South NTS-362R Reflectorless Total Station

Price Negotiable

Price: Negotiable

MOQ: 1pc

Delivery Time: within 3-5work days after the goods are paid .

Brand: South

Product Description

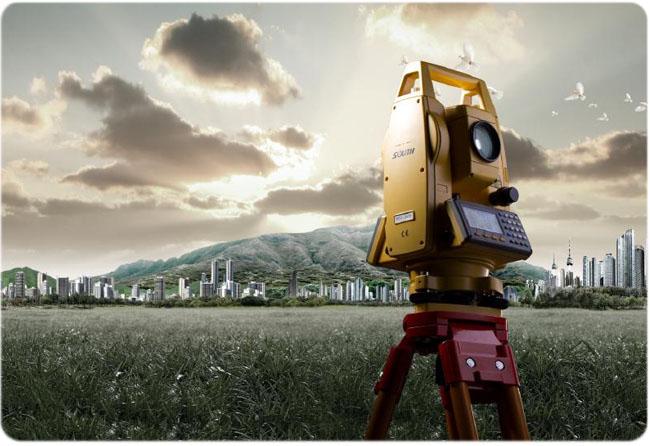

South Total Station NTS-362R Reflectorless Total Station

Quick Details
Place of Origin:China (Mainland)
Brand Name:SOUTH
Model Number:NTS-362R
Reflectorless:300m
With single Prism:5km
Measuring method:absolute encode
Accuracy:2mm+2ppm.D
measuring time:Fine mode:1.2S;Tracking mode:0.5s

Specifications
Absolute Encoding Disk;
Six-line large LCD;
Dual Axis Compensation;
SD card Function and USB interface;
Different Main Board

			NTS-362R
Telescope:
Image			Erect
Magnification			30×
Effective aperture			Telescope:45mm(EDM:50mm)
Resolving power			3″
Field of view			1°30′
Minimum focus			1m
Tube length			154mm
Angle Measurement
Measuring method			absolute encode
Dia of circle(vertical, horizontal)			79mm
Minimum reading			1″ 5″Selectable
Detection method			Horizontal: Dual Vertical: Dual
Accuracy			2″
Distance Measurement:
Max. Range	single prism		5km
	Reflectorless		300m(object in shade,or sky overcast)
Displaly			Max:99999999.9999m Min:0.1mm
Unit			m/ft
Accuracy	Reflectorless	Fine	±(5mm+2ppm·D)
		Tracking	±(10mm+2ppm·D)
	Reflector	Fine	±(2mm+2ppm·D)
		Tracking	±(5mm+2ppm·D)
		IR sheet	±(5mm+2ppm·D)
measuring time	reflectorless		Fine mode:<1.2S;Tracking mode:<0.5s
	reflector		Fine mode:<1.2S;Tracking mode:<0.5s;IR sheet mode:<1.2S
Atmospheric correction			Auto correction ,manual input
Atmosphericrefraction and earth curvature correction			Auto correction ,manual input
prism constant correction			Auto correction ,manual input
Vial
Plate vial			30″/ 2mm
Circular vial			10′/2mm
Auto Vertical Compensator
Type			Dual axis Liquid-electric
Compensation range			±3′
Accuracy			3″
Optical Plumment
Image			Erect
Magnification			3×
Focusing range			0.5m~∝
Field of view			5″
On-board Battery
type			Ni-H ,Rechargeable
Voltage			DC 6V
Continuous operation time			8 hrs
Others
Display			LCD, 6 lines ,digital
Data Communication			RS-232C,USB,SD
Operating temperature			-20°~+45ºC
Dimension			160×150×330mm,5.2kg
