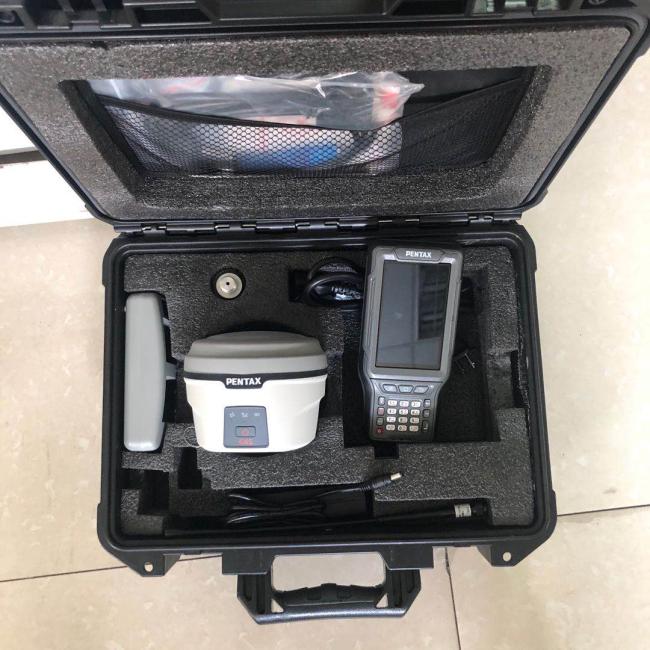

Pentax G6S GNSS Rugged and lightweight compact GPS receivers surveying instrument

Rugged and lightweight compact receivers.
Fast and stress-free RTK operation by taking advantage of TILT Sensor.

• Compact and durable metal housing
• Better dust and weather resistance (IP67)
• Equipped with TILT sensor for easy leveling
• WiFi for direct communication with web browser for e.g. downloading data, firmware upgrades and communication between receiver and controller

• 555 channels
• Signals trackable:
  • GPS: L1 C/A, L1C, L2C, L5
  • GLONASS: L1 C/A, L2C, L2P, L3, L5
  • BEIDOU: B1, B2, B3
  • GALILEO: E1, E5AltBOC, E5a, E5b, E6
  • QZSS: L1 C/A, L1C, L2C, L5, L6
  • SBAS: L1, L5
  • NavIC (IRNSS): L5 (hardware ready)
  • L-Band: up to 3 Channels

• Satellite Signals: GPS: L1 C/A, L2E, L2C, L5 ,GLONASS: L1 C/A, L2C/A, L3CDMA, L2P, L3, L5
• Satellite Signals: BEIDOU: B1 / B2, B3, Galileo: E1, E5A, E5B, E5AltBOC, E6, QZSS: L1 C/A, L1 SAIF, L2C, L5 ,SBAS: L1 C/A, L5, L6
• SBAS 0.5 m
• DGPS Accuracy: 0.25 m +1 ppm
• Internal Radio Frequency: trm101 & Output Power of 0.5/1W
• GSM/GPRS Modem: Gemalto PHS8-P UMTS / HSPA+ / GSM / GPRS / EDGE (supporting NTRIP)
• Selectable Data Output: 1 Hz, 2Hz, 5 Hz, 10 Hz, 20 Hz
• Rugged and lightweight compact receivers.
• Fast and stress-free RTK operation by taking advantage of TILT Sensor.
• Compact and durable metal housing
• Better dust and weather resistance (IP67)
• Equipped with TILT sensor for easy leveling
• WiFi for direct communication with web browser for e.g. downloading data, firmware upgrades and communication between receiver and controller.
