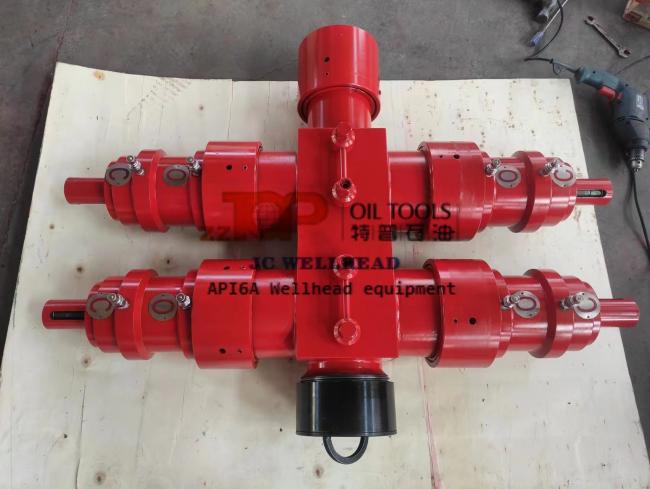

BOP Oil Well Blowout Preventer For Wireline Pressure Control Equipment
Blowout Preventer / Wireline BOP For Wireline Pressure Control Equipment
The Wireline BOP is also called Wireline Valve, which is a piece of Pressure Control Equipment. The Wireline BOP is installed between the wellhead and Wireline Lubricators to close around the wire and seal off the well pressure below it. Then the wireline BOP is applied for sealing the wellhead to prevent well blowout accidents in logging operation when there are accidents and there are cables in the well.
The wireline BOP is mainly composed of main casing,and ram assembly piston,hydraulic cylinder,lead screw,end cap,hand wheel and other spare parts,which are moving in the main casing in opposite direction. The wireline BOP is featured with simple structure,convenient application and maintenance,small volume, light weight,high pressure bearing,hydraulic remote control and simple and reliable operation.
Specification of Wireline BOP / Wireline Valve
| Model | Working Pressure(Psi) |
ID(mm) | Cable Size(mm) | Connection | Service Environment |
Working Temperature |
| 2FZ12-35 | 5000 | 120 | D5.6 -to D12.7 |
73/4"-4ACME | Crude oilWater,Natural gaswith H2S andCO2 | T-20(-29℃~+121℃) (hightemperature to350℃thermalrecovery typeoptional) |
| 2FZ12-70 | 10000 | 120 | 9"-4ACME | |||
| 3FZ12-70 | 10000 | 120 | 9"-4ACME | |||
| 3FZ12-105 | 15000 | 120 | 111/8"-4ACME | |||
| 2FZ13-35 | 5000 | 130 | 73/4"-4ACME | |||
| 2FZ13-70 | 10000 | 130 | 9"-4ACME | |||
| 3FZ13-70 | 10000 | 130 | 9"-4ACME | |||
| 3FZ13-105 | 15000 | 130 | 121/2"-4ACME | |||
| 2FZ14-35 | 5000 | 140 | 73/4"-4ACME | |||
| 2FZ14-70 | 10000 | 140 | Tr240X6 | |||
| 3FZ14-70 | 10000 | 140 | Tr240X6 | |||
| 3FZ14-105 | 15000 | 140 | 13"-4ACME | |||
| 2FZ16-35 | 5000 | 162 | 91/2"-4ACME | |||
| 2FZ16-70 | 10000 | 162 | 111/2"-4ACME | |||
| 3FZ16-105 | 15000 | 162 | 141/8"-4ACME | |||
| 2FZ18-35 | 5000 | 180 | 95/8"-4ACME | |||
| 2FZ18-70 | 10000 | 180 | 115/8"-4ACME |
About ZZ TOP OIL TOOLS
ZZ TOP OIL TOOLS is the manufacture and supply of the wellhead equipment, well surface testing equipment, well flow control equipment according to API 6A, API 16A, and API 16C. The main products are as below:
Wellhead valves: Gate Valves, Plug Valves, Choke Valves, Check Valves, Mud Valves and various wellhead valve parts etc.
Wellhead Manifold: Choke and Kill Manifold, Drilling Floor Manifold, Fracturing manifold, Well Testing Manifold.
Wellhead Equipment: Wellhead Christmas Tree / X-Tree, Casing Head, Casing Hanger, Tubing Head,Tubing Hanger, Casing Spool, Tubing Spool, Drilling Spool etc.
Wellhead Adapter: Spacer Spool / Riser Spool ,Flange Adapter, Union Flange, Double Studded Adapter Flange, Welded Neck Flange, Blind Flange,Companion Flange, Instrument Flange,
Wellhead Clamp & Hub etc.
Wellhead Integral Fittings: Hammer Union, Elbow, Swivel Joint, Block Cross, Block Tee, Straight Pipe, Pipe Loops etc.
Well Pressure Control Equipment: Annular BOP, RAM BOP, Sucker Rod BOP etc
