The divert manifold is a sort of wellhead manifold used for oil well drilling operation, it is the high pressure equipment which used for controlling the fluid direction. The divert manifold is manufactured according to API 6A and API 16C, also it can be designed as per specific requirement from field.

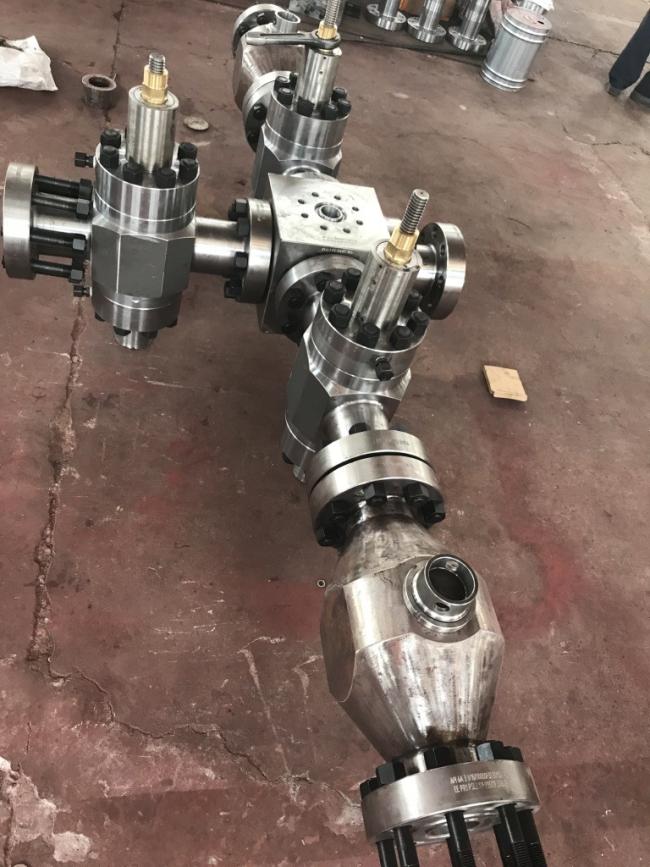

Structure of 3 1/16" divert manfiold

The divert manifold inlet connection is Flange union 3 1/16″-10K-3″1502 and outlet connection is flange 3 1/16″-10K, mainly consist of Hydraulic gate valve, Tee, Union flange, threaded flange and etc.

* The valve is low torque type, and the divert manifold is in easy operation that can meet the requirements of oilfield testing requirements.

* The Hydraulic gate valve is the main part of the divert manifold, consist of valve body, valve Bonnet and actuator etc.

Features of 3 1/16" divert manifold

* The hydraulic gate valve is equipped with actuator which bearing the loading of open and close valve gate, thus the open torque is very low, easy to operate.

* The wave spring front seal is adopted between valve gate and valve seat, valve body is full filled with grease, has better sealing performance compared with other types of gate valve.

* The valve gate and valve seat are made by special material that in wear-resisting and corrosion resistance, in long life time.

*  The valve bore has very small fluid resistant coefficient that easy for pipe cleaning.

Technical Parameter of 3 1/16" divert manifold

About JC Wellhead

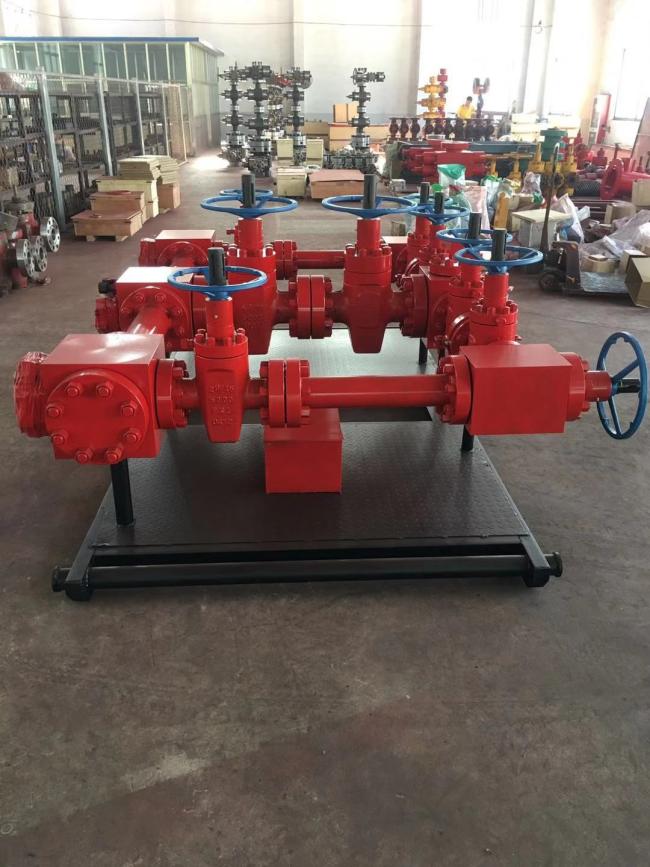

Yancheng Jingcheng Petroluem Machinery Manufacturing hereafter JC Wellhead, is the manufacture and supplier of the various wellhead equipment including wellhead manifold, wellhead Christams tree, wellhead valves, wellhead adapter flanges, casing head assy., tubing head assy,  related parts to meet different requirement in oilfield service operation. The wellhead manifolds are conformed with API 6A and API16C specification, and applied for high pressure and high temperature working condition. The wellhead manifold include choke and kill manifold, fracturing manifold, testing manifold,drilling floor manifold etc.

Except above standard manifold, according to user requirements, we can design and manufacture of various oilfield manifold for drilling, cementing, logging, oil testing, fracturing, coiled tubing and sand control operations and other special needs of high-pressure fluid operation in Desert, marine working.
