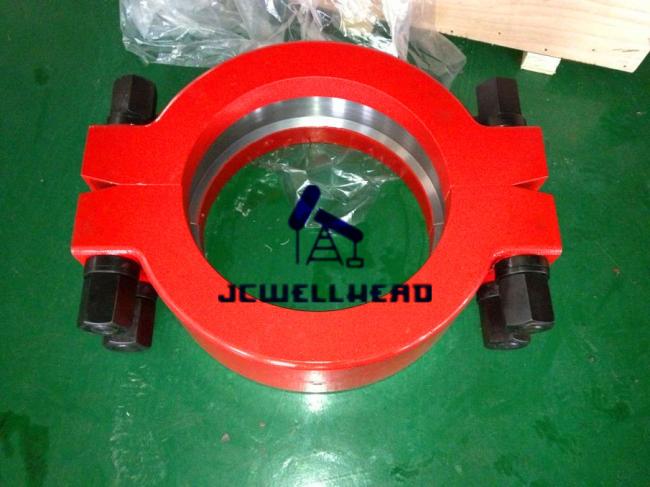

Oil Wellhead Parts API 16A Hub Clamp Connectors Alloy Steel Forging NO. 10
The hub clamp is designed and manufactured according to API Spec 16A, the clamps differ from all other API equipment in regard to design and hydrotest. Clamps serve as fasteners similar to bolts, they do not come in contact with well fluid, and they may connect several API specified connectors having different nominal sizes and working pressures. The hub Clamps provide a reliable means to join API and other hub connections.
Technical parameter of NO. 10 Hub Clamp
| Clamp No. | Nominal Bore | Working Pressure | Ring gasket | Bolt Size |
| 10 | 4 1/16 | 20000psi | BX155 | 1 7/8-8UNX17 |
| 7 1/16 | 10000psi | BX156 | 1 7/8-8UNX17 | |
| 9 |
10000psi |
BX157 | 1 7/8-8UNX17 | |
| 11 | 5000 | BX158 | 1 7/8-8UNX17 |
About JC Wellhead
Yancheng Jingcheng Petroleum Machinery Manufacturing Co.,Ltd was established in 2008, we are specialized in design and manufacturing of the oilfield wellhead equipment. We - YCJC are a registered supplier for CNPC, GWDC, CCDC in China, and ZZ TOP is the certified supplier for SGS Gulf, Oilserv, PSA, OKDC, PRA etc.
With profession engineers we also offer the R&D service to the clients who have special requirements in the oilfield drilling operation and production operation.The wellhead equipment we manufacture and supply include casing head, tubing head, casing spool, tubing spool, Gate valve, Choke valve, Check valve, X-mas tree, VR plug, Tubing hanger, casing hanger, Running tool, Wear bushing, spacer spool, flange adapter, union flange, Hammer union, Elbow, swivel joint, block cross, Block Tee, companion flange, instrument flange, weldneck flange, FC gate, FC seat, FC stem, API Clamp, API Clamp Hub, wellhead various manifold such as choke manifold, kill manifold, drilling manifold, testing manifold ect.
Welcome to contact us for more information!
