Oil Well Testing Service Oil Wellhead Parts High Pressure Choke And Kill Manifold

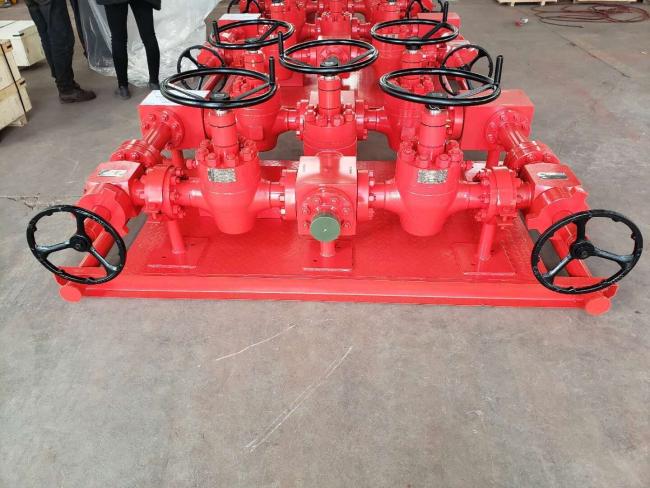

Wellhead Manifolds API 16C High Pressure Choke and Kill Manifold
The choke and kill manifold is necessary equipment for successful control on well kick and implementation of oil and gas well pressure control technologies.If a hydraulic control cabinet is deployed, the system can realize remote control functions.
It is designed and manufactured in accordance with API Spec. 16C/6A, and they have been licensed to bear the logos of AP Spec.16C/6A. They can be designed and manufactured according to the requirements of users.
Structural characters of choke and kill manifold
* The outlet connection of the manifolds are all in compliance with API Spec 6A and can be used together with other devices that meet the
requirements of API Spec 6A.
* The high pressure choke and kill manifold can be used with an ambient temperature of -45oC
* The plate valve of choke and kill manifold is made of corrosion resistance and erosion resistance materials. The rams and valve seat are
welded in alloy material so they have good tightness and are safety and reliable
Specification of the Choke manifold and Kill manifold
|
|
Main Bore and Bypass Bore |
Working Pressure |
Temp. |
Material Class |
PSL Level |
PR Level |
Control type |
|
Chock Manifold |
2-1/16(52) |
2000psi-15000psi 14MPa-105MPa |
-46oC- 121oC
L - U |
EE FF HH |
PSL1
PSL4 |
PR1 PR2 |
Two-wing single opening and closing manual structure Two-wing double opening and closing manual structure Two-wing double opening and closing hydraulic structure Three-wing double opening and closing manual structure Three-wing double opening and closing hydraulic structure |
|
2-9/16(65) |
|||||||
|
3-1/8(78) |
|||||||
|
4-1/16(103) |
|||||||
|
Kill Manifold |
2-1/16(52) |
2000psi-15000psi 14MPa-105MPa |
Single-wing structure with relief valve, Two-wing structure with relief valve |
||||
|
2-9/16(65) |
|||||||
|
3-1/8(78) |
|||||||
|
4-1/16(103) |
About JC Wellhead
Yancheng Jingcheng Petroluem Machinery Manufacturing hereafter JC Wellhead, is the manufacture and supplier of the various wellhead equipment including wellhead manifold, wellhead Christams tree, wellhead valves, wellhead adapter flanges, casing head assy., tubing head assy, related parts to meet different requirement in oilfield service operation. The wellhead manifolds are conformed with API 6A and API16C specification, and applied for high pressure and high temperature working condition. The wellhead manifold include choke and kill manifold, fracturing manifold, testing manifold,drilling floor manifold, drilling fluid manifold etc.
YCJC's advantage:
* Excellent and stable quality of the products conformed with API and ISO standard
* Strict quality control on raw material and machining, we can arrange the SGS or BV to witness the test
* We supply various wellhead products to meet the customers' operation.
* Timely delivery, professional service on export procedure,
* Product guarantee and best after-sales service.
Welcome to contact us for more information!
