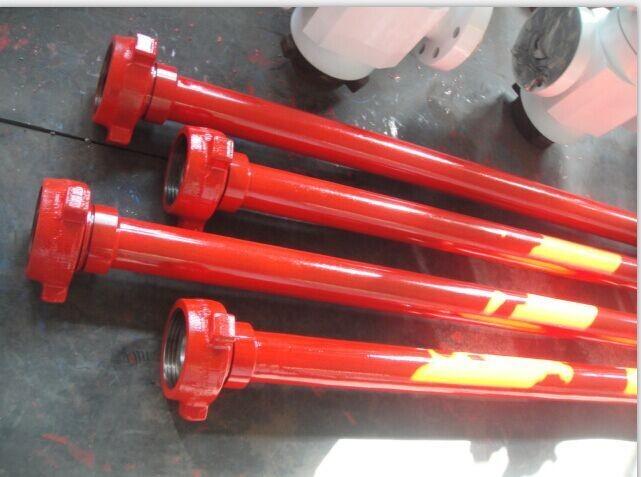

Red Wellhead Fittings Chicksan Straight Pipe 3 " Fig1502 Union Pipeline
API 6A Wellhead Chicksan Straight Pipe 3 " Fig1502 Union Pipeline
The union straight pipe is manufactured according to API 6A specification with hammer union end connection, it is used for various manifold connection in wellhead equipment. The High pressure straight pipes have four different types: pressure seal pipes, non-pressure seal pipes, integral straight pipes and welding pipe. We can provide integral straight pipes in 1”-4” and 1000psi to 15000psi straight pipes with available length 1m, 1.5m, 2m, 2.5m, 2.8m long. We also provide HP straight pipes with other sizes and pressure ratings as per customer’s requirements.
Features of union pipeline
* The integral union pipeline is with union end instead of screw connection on the top,which make the pipeline more secure and reliable;
* Easy and quick assembling and disassembling;
* High strength and low weight of union pipeline;
* Each technical parameters and performances of pup joints conform to standards of API Spec 6A and can be exchanged with like products internationally.
Specification of straight pipe
| Product Name: | API Pup Joints, API High Pressure Straight Pipes |
| Size: | 1-1/2", 2", 3", 4" |
| Material: | Alloy Steel(Integral Forged) |
| Temperature Rating: | -29℃ to 121℃ PU, -46℃~121℃ LU |
| Type: | Pressure Seal, Non-Pressure Seal, Integral Type and Welding Type |
| Length: | 10 feet or customized |
| Standards: | API Spec 16C, API 6A, NACE MR0175, ISO 9001, ISO14001 etc |
| Cold Working Pressure: | 6000 PSI to 20000 PSI |
| End Connection: | Fig 602, Fig 1002, Fig 1502, Flange, Thread |
About JC Wellhead
Jingcheng Petroleum Machinery Manufacturing Co.,Ltd was established in 2008, we are specialized in design and manufacturing of the oilfield wellhead equipment. We - YCJC are a registered supplier for CNPC, GWDC, CCDC in China.
In 2012, JC wellhead jointed with ZZ TOP Oil Tools, and found the office in Xi'an mainly engaged in abroad marketing, through these years of efforts, our wellhead equipment is exported to many countries, such as Thailand, UAE, Iran, Brazil, Argentina, USA etc. and enjoyed good reputation from the customers.
With profession engineers we also offer the R&D service to the clients who have special requirements in the oilfield drilling operation and production operation.The wellhead equipment we manufacture and supply include casing head, tubing head, casing spool, tubing spool, Gate valve, Choke valve, Check valve, X-mas tree, VR plug, Tubing hanger, casing hanger, Running tool, Wear bushing, spacer spool, flange adapter, union flange, Hammer union, Elbow, swivel joint, block cross, Block Tee, companion flange, instrument flange, weldneck flange, FC gate, FC seat, FC stem, API Clamp, API Clamp Hub
Welcome to contact us for more information!!
