Oil well drilling operation Wellhead Manifold with Mud Gate Valve 10000 psi
Wellhead Manifolds API 16C Drilling Fluid Manifold with Mud Gate Valve Manifold

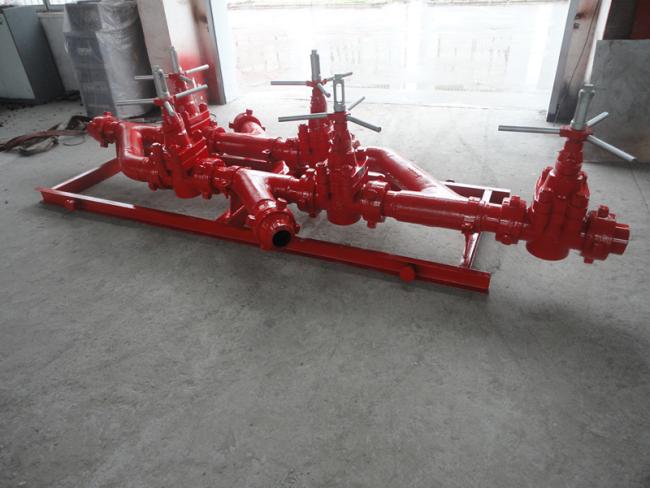

Drilling fluid manifold is Mud Valve Manifold used in onshore drilling platform and offshore platform. The drilling fluid manifold is one of main devices for jet grouting well drilling. The drilling fluid manfiold is to collect the high-pressure drilling fluid discharged by mud pump, and delivered the mud to the well and mud gun through the pump manifold and the high-pressure riser, which can realize the positive and negative circulation of drilling mud and other various working conditions.Drilling fluid manifold consists of mud gate valve, high pressure union, tee, cross, elbow, high pressure hose, pup joint, pressure gauge, etc.
Installation of drilling fluid manifold
* When installing, first clean the seal surface of the union and the groove of the seal ring, apply grease and get sundries out of the pipe.
* Check whether all the outer connections are fastened.
* Parts may be disassembled when handing, clean all the pipelines. Wrap the connecting parts after applying grease to keep sundries out and avoid bumping threads and sealing surface.
Specification of the Choke manifold and Kill manifold
| The matching drilling machine type | ZJ30,ZJ40,ZJ45,ZJ50,ZJ70 | ZJ90,ZJ120 |
| Working pressure | 35MPa,52.5MPa | 70MPa |
| Nominal Diameter | 2”,3”,4”,5” | |
| Working medium | Oil, gas, water, mud, cement | |
| Connection type | Union, Flange | |
About JC Wellhead
Yancheng Jingcheng Petroluem Machinery Manufacturing hereafter JC Wellhead, is the manufacture and supplier of the various wellhead equipment including wellhead manifold, wellhead Christams tree, wellhead valves, wellhead adapter flanges, casing head assy., tubing head assy, related parts to meet different requirement in oilfield service operation. The wellhead manifolds are conformed with API 6A and API16C specification, and applied for high pressure and high temperature working condition. The wellhead manifold include choke and kill manifold, fracturing manifold, testing manifold,drilling floor manifold, drilling fluid manifold etc.
YCJC's advantage:
* Excellent and stable quality of the products conformed with API and ISO standard
* Strict quality control on raw material and machining, we can arrange the SGS or BV to witness the test
* We supply various wellhead products to meet the customers' operation.
* Timely delivery, professional service on export procedure,
* Product guarantee and best after-sales service.
