PLS 3 Production Level Oilfield Wellhead Valves 10000psi Working Pressure
API 6A Wellhead Valves High Pressure Plug Valve
The plug valve is a necessary part of the wellhead control equipment. The plug valve is designed and manufactured according to API 6A specification and applied for the high pressure manifold for the cementing and fracturing operations in oil field, also the plug valve is suitable to control over the similar high pressure fluid.
Features of the Plug valve
* Plug valve is designed with compacted structure
* It is easy maintenance of the plug valve
* Short torque, rapid opening and easy operation.
* The plug valve is used in the cementing and fracturing manifolds.

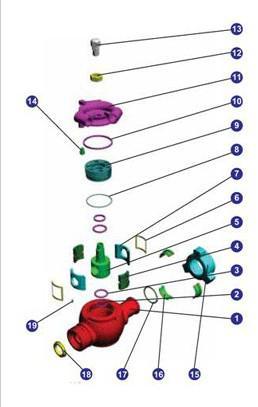

Part list of plug valve
| Component | Material | |
| 1 | Body | 4130 |
| 2 | Packing | 1010 |
| 3 | O-Ring | NBR |
| 4 | Side Segment | 410 |
| 5 | Plug | 4130 |
| 6 | Seal Segment | Rubber |
| 7 | Seal Segment | 410 |
| 8 | O-Ring | NBR |
| 9 | Body Cap | 4130 |
| 10 | O-Ring | NBR |
| 11 | Plug Cap | WCB |
| 12 | Lock Nut | 5140 |
| 13 | Grease Fitting | Assy. |
| 14 | Locating Pin | 1045 |
| 15 | Detachable Nut | 1045 |
| 16 | Retainer Segment | 5140 |
| 17 | Retainer Ring | 1566 |
| 18 | Seal Ring | Rubber |
| 19 | Stop Pin | 410 |
About JC Wellhead
Jingcheng Petroleum Machinery Manufacturing Co.,Ltd was established in 2008, we are specialized in design and manufacturing of the oilfield wellhead equipment. We - YCJC are a registered supplier for CNPC, GWDC, CCDC in China.
We are able to manufacture and supply the wellhead equipment, well surface testing equipment, well flow control equipment according to API 6A, API 16A, and API 16C. The main products include wellhead Christmas tree, casing head, tubing head, casing spool, tubing spool, Gate valve, Choke valve, Check valve, , VR plug, Tubing hanger, casing hanger, Running tool, Wear bushing, double studded adpater flange,spacer spool / riser spool, flange adapter, union flange, Hammer union, Elbow, swivel joint, block cross, Block Tee, companion flange, instrument flange, weldneck flange, FC gate, FC seat, FC stem, API Clamp, API Clamp Hub, various high pressure manifold such as choke manifold,
YCJC will constantly insist on the innovation of products, technologies and system and strive for providing the excellent products and services for our customers. We are sincerely welcome you to work together.
