2 9/16" Oil Well Blowout Prevention Equipment Wireline BOP 10000 Psi
Oil Well Blowout Preventer API 16A Cable BOP 2 9/16" Wireline BOP

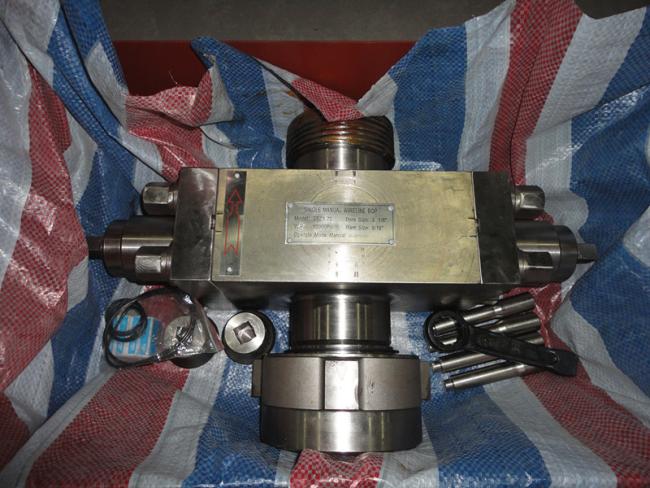

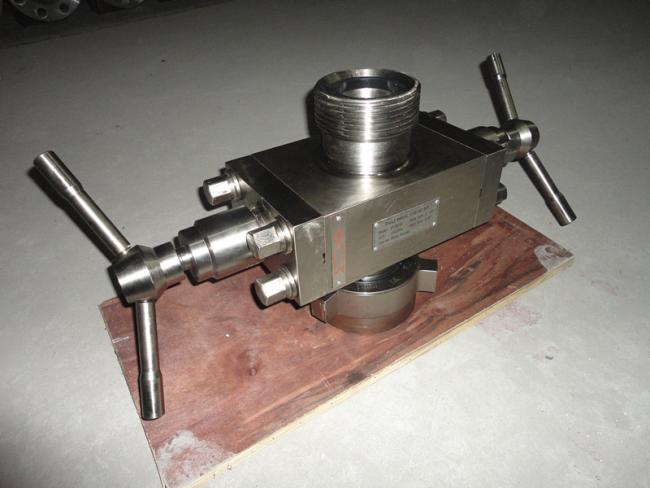

The cable BOP is a kind of wireline BOP, mainly used for cable sealing during drilling test, formation test, perforating and oil production service. The cable BOP adopts round ram, with good force bearing and compact structure. It includes two operated type: Manual cable BOP and hydraulic cable BOP in Single RAM, Double RAM and triple RAM. The top and bottom connection of cable BOP are Union, which can connect with wellhead and other BOP by adapter flange.
Feature of cable BOP / wireline BOP
* The cable BOP with simple structure is easy for installation and operation
* The cable BOP is with reliable sealing
* Long service life for cable BOP
Specification of cable BOP
| Model | Nominal Dia. | Working pressure | Structure of RAM | Operated type |
| FZ65-35/70/105 | 2 9/16” | 35/70/105 | Single,double,triple | Manual, Hydraulic |
| FZ76-35/70/105 | 3” | 35/70/105 | Single,double,triple | Manual, Hydraulic |
| FZ120-35/70/105 | 4 3/4” | 35/70/105 | Single,double,triple | Manual, Hydraulic |
| FZ140-35/70/105 | 5 1/2” | 35/70/105 | Single,double,triple | Manual, Hydraulic |
| FZ160-35/70/105 | 6 5/16” | 35/70/105 | Single,double,triple | Manual, Hydraulic |
| FZ180-35/70/105 | 7 1/16” | 35/70/105 | Single,double,triple | Manual, Hydraulic |
About JC Wellhead
Jingcheng Petroleum Machinery Manufacturing Co.,Ltd was established in 2008, we are specialized in design and manufacturing of the oilfield wellhead equipment. We - YCJC are a registered supplier for CNPC, GWDC, CCDC in China.
We are able to manufacture and supply the wellhead equipment, well surface testing equipment, well flow control equipment according to API 6A, API 16A, and API 16C. The main products include wellhead Christmas tree, casing head, tubing head, casing spool, tubing spool, Gate valve, Choke valve, Check valve, , VR plug, Tubing hanger, casing hanger, Running tool, Wear bushing, double studded adpater flange,spacer spool / riser spool, flange adapter, union flange, Hammer union, Elbow, swivel joint, block cross, Block Tee, companion flange, instrument flange, weldneck flange, FC gate, FC seat, FC stem, API Clamp, API Clamp Hub, vairous high pressure maifold etc.
Welcome to contact us for more information!
