API 16D Wellhead BOP Control Unit Hose For Controlling Oil Well BOP 25mm
API 16D Wellhead BOP Control Unit Hose For Controlling Oil Well BOP

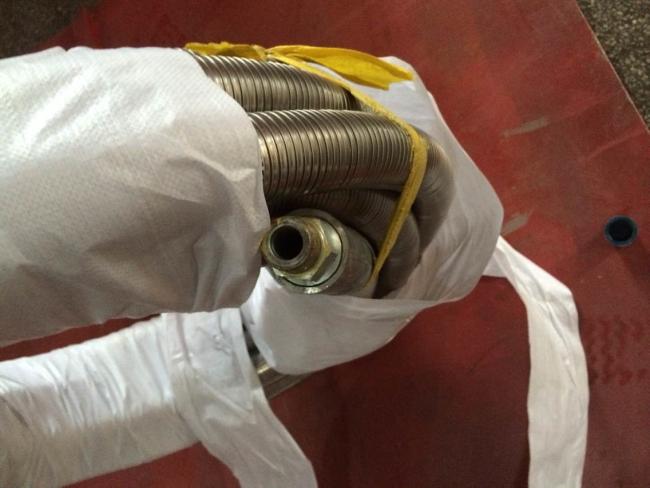

The hose is one of well control high pressure equipment. The BOP control unit hose is a kind of fire resistant and heat insulation hose assembly and mainly used for hydraulic control of the BOP for drilling and for hydraulic transmission at high temperature and flammable places in the metallurgic industry. The BOP control unit hose is designed wth high pressure steel wire spiral rubber hose as substrate, the outer shell coating fireproof coating layer, steel wire braided layer and flame retardant layer.
Technical parameter of Wellhead BOP Control Unit Hose
| Nominal ID/mm | OD/mm | Operating pressure/Mpa | Min burst pressure/Mpa | Min bending radius/mm | Thread | Operating time(min) with fire-resisting at 750oC | |
| Normal | Limit | ||||||
| 19 | 44 | 35 | 105 | 280 | NPT LP | 5 | 25 |
| 50 | 70 | 175 | |||||
| 22 | 47 | 35 | 105 | 320 | |||
| 53 | 70 | 175 | |||||
| 25 | 50 | 35 | 105 | 360 | |||
| 56 | 70 | 175 | |||||
| 31.5 | 56 | 35 | 105 | 460 | |||
| 62 | 70 | 175 | |||||
| 38 | 63 | 35 | 105 | 560 | |||
| 69 | 70 | 175 | |||||
About JC Wellhead
Jingcheng Petroleum Machinery Manufacturing Co.,Ltd was established in 2008, we are specialized in design and manufacturing of the oilfield wellhead equipment. We - YCJC are a registered supplier for CNPC, GWDC, CCDC in China.
We are able to manufacture and supply the wellhead equipment, well surface testing equipment, well flow control equipment according to API 6A, API 16A, and API 16C. The main products include wellhead Christmas tree, casing head, tubing head, casing spool, tubing spool, Gate valve, Choke valve, Check valve, , VR plug, Tubing hanger, casing hanger, Running tool, Wear bushing, double studded adpater flange,spacer spool / riser spool, flange adapter, union flange, Hammer union, Elbow, swivel joint, block cross, Block Tee, companion flange, instrument flange, weldneck flange, FC gate, FC seat, FC stem, API Clamp, API Clamp Hub, vairous high pressure maifold etc.
