Thread Union 10000psi DD Oilfield Wellhead Plug Valve
API 6A WELLHEAD PLUG VALVE 2” X 10000 TYPE SCREW FOR CEMENTING SERVICE
Plug valve is a necessary part that is applied to high pressure manifold in well cementing and fracture service, also selected for high pressure fluid control system. The plug valve is designed and manufactured according to API 6A specification, the plug valve is featured with compact structure, easy maintenance, low torque, and rapid operation.Plug valve is mainly composed of valve body, handwheel and plunger piston.The outlets of plug valve are WECO Hammer Union connections (other connections as per the customers' requirement), cylinder fits between body and wear bush, and seal rings are inlaid into outer of wear bush for good seal performance.
Technical parameter of High pressure Plug valve
| Working Pressure: | 2,000 ~ 15,000psi |
| Nominal Bore Diameter: | 2” and 3” |
| Temperature Class: | K ~ V |
| Specification Level: | PSL 1 ~ 4 |
| Performance Requirement: | PR 1 ~ 2 |
| Material Class: | AA ~ EE |
| Working Medium: | crude oil and natural gas |
Detailed specification of plug valve

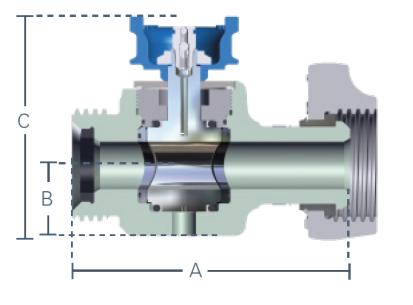

| Type | End connection, thread | A, mm | B, mm | C, mm | Inner Dia., mm | Weight, kg | Working pressure, MPa |
| Plug valve 2’’ 70MPa | Nipple Cn Tr 104.775x8.476 X Nut Cn Tr 104.775x8.476 | 260 | 66 | 205 | 44.5 | 23.1 | 70 |

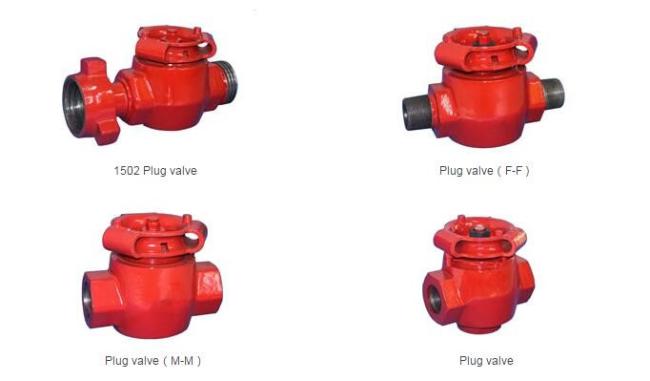

Types of plug valve
About JC Wellhead
Jingcheng Petroleum Machinery Manufacturing Co.,Ltd was established in 2008, we are specialized in design and manufacturing of the oilfield wellhead equipment. We - YCJC are a registered supplier for CNPC, GWDC, CCDC in China.
With profession engineers we also offer the R&D service to the clients who have special requirements in the oilfield drilling operation and production operation.In 2012, JC wellhead jointed with ZZ TOP Oil Tools, and found the office in Xi'an mainly engaged in abroad marketing, through these years of efforts, our wellhead equipment is exported to many countries, such as Thailand, UAE, Iran, Brazil, Argentina, USA etc. and enjoyed good reputation from the customers.
The wellhead equipment we manufacture and supply include casing head, tubing head, casing spool, tubing spool, Gate valve, Choke valve, Check valve, Plug Valve, X-mas tree, VR plug, Tubing hanger, casing hanger, Running tool, Wear bushing, spacer spool, flange adapter, union flange, Hammer union, Elbow, swivel joint, block cross, Block Tee, companion flange, instrument flange, weldneck flange, FC gate, FC seat, FC stem, API Clamp, API Clamp Hub as well as wellhead manifold including choke manifold, kill manifold, driling testing manifold, drilling floor manifold etc.
YCJC will constantly insist on the innovation of products, technologies and system and strive for providing the excellent products and services for our customers. We are sincerely welcome you to work together.
