Low Noise Fully Auto Steel Wire Mesh Machine For Filter Stable Performance

Green 1.2m Width Low Noise Fully-automatic Steel Wire Mesh Machine For Wire Mesh Filter

The Intrudution Of Jinglian Machinery

Raoyang Jinglian is a professional wire mesh weaving machine located in Rayoyang County, the manufacter is facousd on the wire mesh machine making for more than 10 tens, With the professional technical worker and the update techinolgy, We share the 40% market of the local market, Now we are exporting our stable  machine to overseas to help our customers to take the wire mesh market, During the time , We gathered a good reputation, That's make us more cofindent to give the best products and after-sale service to our customer.

The main components and specifications

Take-up unit

a model: nonstop active take-up and gear-on-worm speed change

b, Weft density range: mesh side length for a square messh net: 0.45-0.036mm, Microgroove net: 2600 nesh/inch

c, Take-up roller diameter and effetive length: 192*1500mm, 192*1800mm

Weft Beating-up unit:

a, Mode: Crankshaft weft beating up

b. Crankshaft Radius:65mm

Opening Unit:

a mode: cam feeding

b, Cam stroke:18mm

Warp Feeding unit:

a Mode: nonstop active warp feeding and gear-on-worm speed change

b. Warp beam diameter and effective length: 320mm*1440mm, 320mm*1740mm

The Appllication of the Wire Mesh Weaving Machine

Round Filter wire mesh

Square Wire mesh filter

Plain weavig wire mesh

Dutch  wire mesh

Microgroove net

pattered weaving mesh

Bead weaving wire mesh

Stainless steel wire mesh

Mosquito-protection wire mesh

The Technical Parameters of the Wire Mesh Weaving Machine

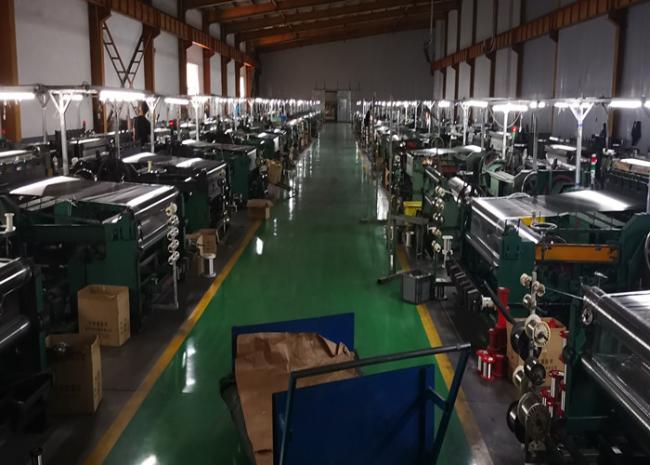

The Picture of the Wire Mesh Weaving Machine
