Hot Dip Galvanized Wire Mesh Loom Machine Mine Screen Loom Heavy Duty Type
Hot Dip Galvanized Crimped Wire Mesh Machine Mine Screen Loom Heavy Duty Type
Summary
Crimped Wire Mesh Machine: used for large diameter wire diameter cotton gin rolled into the required shape, all kinds of mechanical weaving square hole sieve special series of knitting machine, the product structure is compact, easy to operate, can be woven wire diameter 2mm -8mm, mesh 4mm-120mm, width of 1-2.2meters, knitting, machine products are widely used in mining for classification screen use (commonly known as mine screen mesh), mesh weaving machine is also known as mine.
The technical parameters are shown in the Table below.
Weaving width: 0.9-2.5m
Wire diameter: 1.5-6.0mm
Mesh: 3*3-80*80mm
Quality certification: ISO:9001:2008
| Gauge | Total Measurement(mm) | Total Weight(kg) | Breadth of the net (mm) |
| ZWJ 01 | 2500*2100*1350 | 1200 | 1.0 |
| ZWJ 02 | 2500*2300*1350 | 1280 | 1.2 |
| ZWJ 03 | 2500*2400*1350 | 1350 | 1.3 |
| ZWJ 04 | 2500*2600*1350 | 1500 | 1.5 |
| ZWJ 05 | 2500*2900*1350 | 1800 | 1.8 |
| ZWJ 06 | 2500*3400*1350 | 2000 | 2.2 |

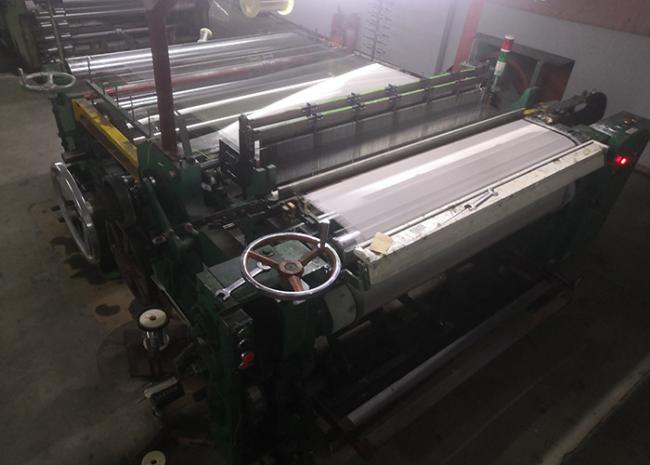

Machine picture
