Stainless Steel Dutch Weaving 1300mm Wire Mesh Making Machine

Stainless Steel Dutch Weaving Wire Mesh Shuttleless Weaving Machine

Product description

The metal mesh weaving machine, also known as shuttleless weaving machine, is divided into three types, namely zwj-1300, medium and heavy mesh weaving machine, zwj-1600b metal mesh weaving machine and zwj-2000 heavy metal mesh weaving machine.

Wire mesh knitting machine

Single motor control

Automatic compensation of crimp diameter feeding

Diameter breaking and weft breaking self stop alarm

It is suitable for soft black metal, stainless steel, flexible copper wire, lead wire and organic fiber

Model mesh width mesh density crankshaft speed

Zwj-1300 1300mm square mesh 10-100 mesh / inch 75rpm

Special net 40-2800 mesh / inch

Total weight of motor

2.2kw 3500kg

Zwj-1600 1600mm square mesh 10-100 mesh / inch

Special net 40-2800 mesh / inch 70rpm 3kw 4500kg

Zwj-2000 2000mm square mesh 10-100 mesh / inch

Special network 40-3500 mesh / inch

4kw 6000kg


Main features

1. High adaptability to metal wire: Apply to imported and domestic metal wires

2. Large adjusting range: Weave 14-400 mesh square hole mesh or 2600 mesh special mesh with various lines, such as plain weave, twilled weave, satin weave, taper contrast thick mesh weaving, superior to other models

3. It adopts shuttleless straight line weft insertion weaving and mechanical automatic let-off and take-up, has small opening amount and smooth wire side, can weave microgroove mesh without bright spot or bright channel and produce high-grade screen mesh, and conforms to national standard.

4. Low center of gravity, good stability, low noise, less energy consumption, high efficiency

5. Reasonable design, simple structure, convenient operation, easy regulation and repair


The technical parameters are shown in the Table below.



Operation


1. The weaving machine can be started up and stopped at any running position.
2. It has the function of automatic stop and red/green light indication at weft or warp broken.
3. At a fault of weft broken or warp broken, the weaving machine will be automatically stopped and the red/green light will give an indication. The weaving machine can be brought back into normal operation after the fault is removed, the STOP button is pressed down, and the indicator is turned off. If the indicator does not turn off when the STOP button is pressed down, and the weaving machine can not be brought back into normal operation even by pressing down the FORWARD button, it means the fault hasn't been removed yet.
4. When necessary, the weaving machine can be stopped at any running position by pressing down the STOP button.
5. The weaving machine will be brought into reverse running by pressing down the REVERSE button. Usually reverse running is required at any weft broken, but it is recommended not using this function frequently otherwise the rapier will break off the warp line or the motor will be damaged because of overheat.

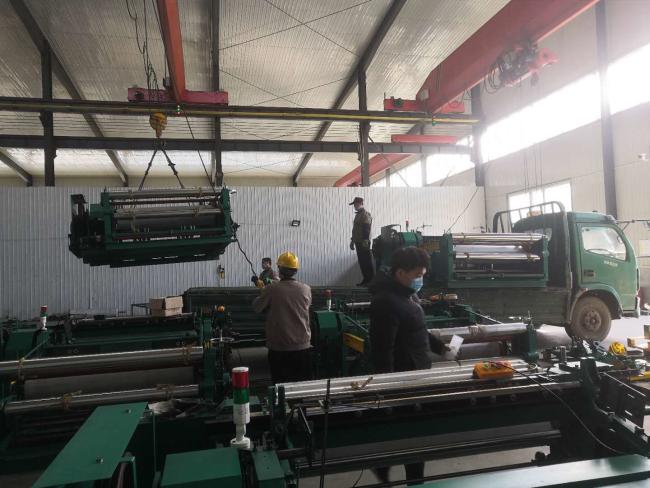

Machine picture
