Tight Buffered Fiber Optic Cable 2-24 Cores Excellent Strip Force Stability
Indoor 2-24 Cores Distribution Tight Buffer Fiber Optic Cable
These cables are used as indoor distribution cables due to ease of their termination and connection.
The installer can recognize saving from lower cost of termination of Tight buffer cables.

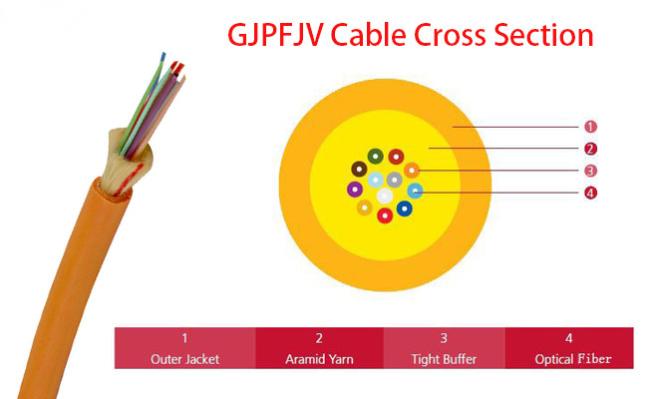

They have high moisture resistance and can be routed across multiple bends. Each fiber is mechanically
reinforced with two successive sheaths of 400µm and 900µm which enables direct termination of connectors.
Excellent strip force stability, ber geometrical dimension and transmission performance meets the customer
demand. Available in PVC, LSZH, Plenum outer sheath and tight buffer: 900µm, 600µm. The cable is specially
designed for indoor applications like floor distribution, interconnection and equipment connection.
. ITU-T G652.D . ITU-T G651.1 OM1 OM2 OM3 OM4
. ITU-T G657.A . IEC60793-2-10 type A1a.1/A1b OM1/OM2
. IEC60793-2-10 type A1a.2 OM3 . IEC60793-2-10 type A1a.3 OM4
. ISO/IEC 11801 , ISO/IEC 24702 . IEEE 802.3z Gigabit Ethernet
. ANSI/TIA/EIA 568C.3 . ROHS Compliant Directive 2011/65/EU(ROHS2.0)
Mechanical & Environmental Characteristics
| ITEM | Value |
| Max. Tensile Load (Short Term) | 1500N |
| Max. Tensile Load (Long Term) | 600N |
| Max. Crush Load (Short Term) | 2000N/100mm |
| Max Crush Load (Long Term) | 1000N/100mm |
| UL Fire Rated | OFNR |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Sheath Material | Standard: PVC Optional: LSZH, PE or other |
ANSI/TIA/EIA-598-B Standard Fiber Color Code
Fiber 13 and higher The color code is repeated with added black stripe or dash
Note: Fiber Tube color will be followed with same order.
