12 Core Armoured Fiber Optic Cable Central Loose Tube Outdoor Environmental Protection

Central Loose Tube Armoured 12Cores Outdoor Optical Cable GYXTW

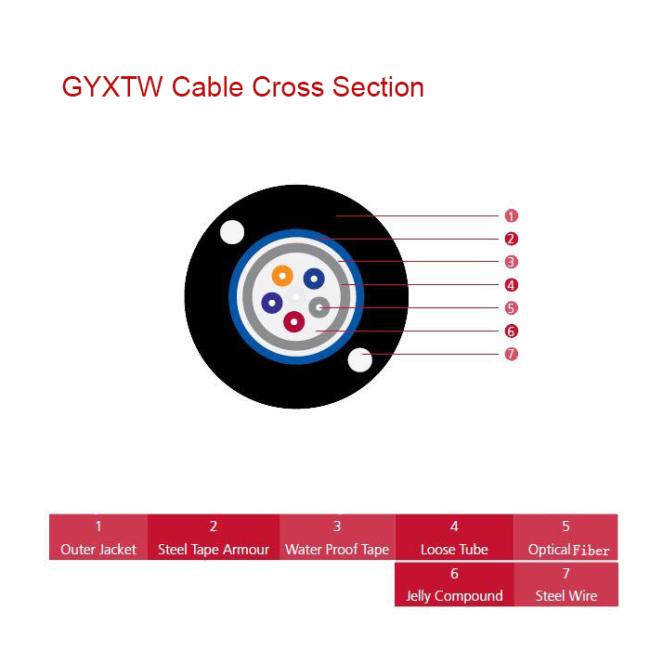

These cables are constructed with a central tube filled with water blocking jelly, water blocking tape
over the tube giving it excellent water and moisture resistance. A corrugated steel armouring and two
steel wires strengthening with in the outer PE sheath give this cable excellent tensile strength,
mechanical and environmental protection.

They have small diameter, light weight and installation friendly since they come in a single tube with
loose tube fiber count up to 12 fibers. Their compact construction protect the loose tube from shrinking,
the armour makes it crush, rodent and impact resistant, the water proofing tape and jelly protects it from
water and moisture, the outer PE sheath gives it ultraviolet protection.

This cable is suitable for outdoor distribution through ducts, conduits or aerial pipe lines. They come in
larger delivery length, so can also be used in long distance communication system, service drop cables,
building interconnections.

Fiber 13 and higher The color code is repeated with added black stripe or dash
Note: Fiber Tube color will be followed with same order.
