Double Armoured Fiber Cable , Double Sheathed Fiber Optic Network Cable

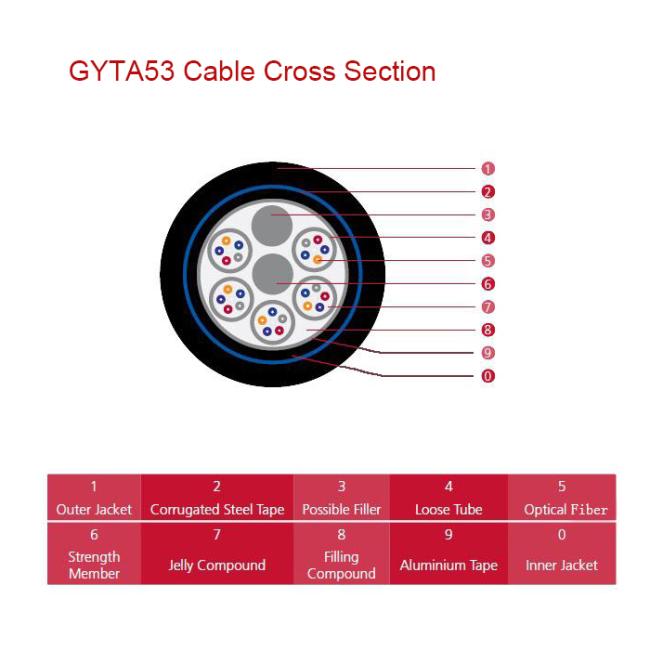

Double Armoured and Double Sheathed Outdoor Optical Cable GYTA53
These cables are constructed with a multiple tube filled with water blocking jelly giving very high fiber
count up to 144 fiber stranded fiber optic cable, they form the backbone of high speed networks. They
give flexibility and versatility to networks and can be used for duct and direct burial applications.
Metallic / Non metallic FRP strength members in the cable give it good tensile strength, water blocking
jelly in the tube and tape over the tube give it excellent water and moisture resistance. Double sided PE
corrugated steel armouring and PE outer sheath give this cable excellent tensile strength, mechanical,
rodent, ultraviolet and environmental protection.
They come in larger delivery length, so can also be used in long distance communication system, building
interconnections, trunk lines, LAN, distribution networks.
. ITU-T G652.D . ITU-T G651.1 OM1 OM2 OM3 OM4
. ITU-T G657.A . IEC60793-2-10 type A1a.1/A1b OM1/OM2
. IEC60793-2-10 type A1a.2 OM3 . IEC60793-2-10 type A1a.3 OM4
. ISO/IEC 11801 , ISO/IEC 24702 . IEEE 802.3z Gigabit Ethernet
. ANSI/TIA/EIA 568C.3 . ROHS Compliant Directive 2011/65/EU(ROHS2.0)
Mechanical & Environmental Characteristics
| ITEM | Value |
| Max. Tensile Load (Short Term) | 3000N |
| Max. Tensile Load (Long Term) | 1000N |
| Max. Crush Load (Short Term) | 1500N/100mm |
| Max Crush Load (Long Term) | 500N/100mm |
| UL Fire Rated | OFNR |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Sheath Material | Standard: PE Optional: LSZH or other |
ANSI/TIA/EIA-598-B Standard Fiber Color Code
Fiber 13 and higher The color code is repeated with added black stripe or dash
Note: Fiber Tube color will be followed with same order.
