Reliable Protection Fiber Optic Distribution Box For Small Capacity Communication System
Indoor 24Cores Fiber Splitter Box 24Ports Fiber Optic Distribution Box GP(05)A-24
1. Available for small capacity coomunication system
2. Composed of two parts, one links with optical cables for fusion connection between optical cable and fiber pigtail and another links with patch cord
3. Provide fusion and storage applianc for optical cables
4. Reliable protection appliance of fixing, stripping and earthing for optical fiber
5. Whole range protected desigh for fiber lay to ensure the bending radius=4omm
6. Provide various accessories to avoid any unexpected damage to the fiber
7. Cold rolled steel sheet,electrostatic spraying

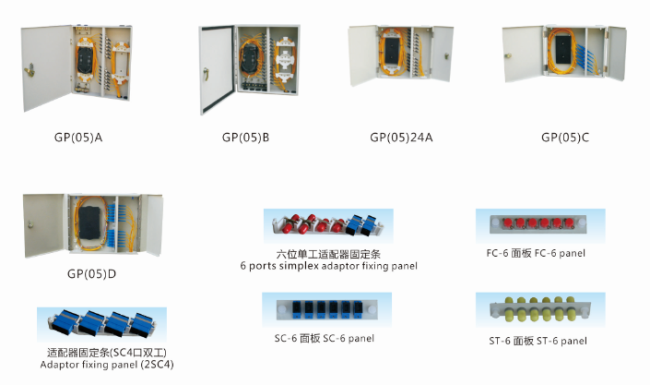

Type |
Dimension(mm) | Max Capacity (cores) |
Remark |
| GP(05)A-24 | 455*405*80 | 24 |
The case body is made of cold rolled steel sheet, electrostatic spraying ,outdoor wall mouting, provide 24-72 adaptors, available for FCSCSTLC |
| GP(05)A-48 | 455*405*120 | 48 | |
| GP(05)A-72 | 455*405*150 | 72 | |
| GP(05)B-48 | 455*405*120 | 48 |
The case body is made of stainless steel, electrostatic spraying, outdoor wall mouting, provide 48-72 adaptors, available for FCSCSTLC |
| GP(05)B-72 | 455*405*150 | 72 | |
| GP(05)A-24A | 350*350*80 | 24 |
The case body is made of cold rolled steel sheet, electrostatic spraying, outdoor wall mouting, provide 12-24 adaptors, available for FCSCSTLC |
| GP(05)C-FC12 |
350*300*80
|
12 | |
| GP(05)C-SC12 | |||
| GP(05)D-FC24 | 24 | ||
| GP(05)D-SC24 |
Max capacity: 48 cores
