Yellow Color 9/125 SM Simplex SC APC Fiber Optic Pigtail 0.9mm
Yellow Color 9/125 SM Simplex SC APC Fiber Optic Pigtail 0.9mm
The single mode/Multimode fiber patch cable meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling.
HG also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.
Our Advantage:
(1)Manufacturer
(2)1pc MOQ
(3)Zero-Defects QA Program
(4)High Quality Materials
(5)Advanced Equipment & Tooling
(6)In-house Engineering
(7)Expert Technical Support
(8)100% Product Testing
(9)100% Product Guarantee
(10)Fast Turn Around
(11)Same-Day Manufacturing Available
Specification:
| Fiber Optic Patch Cord / Fiber Optic Pigtail | |||
| Feature: (1) Inner: Ceramic Ferrule (2) IEC Standard (3) Green Production, RoHS Standard (4) Excellent Polished and 100% tested. (5) High stability various environments (6) Customize order available |
Mode | SM | MM |
| Polish | UPC | PC | |
| Insertion Loss | Typical ≤0.2dB | ≤0.3dB | |
| Maximum ≤0.3dB | |||
| Return Loss | ≥50dB (UPC),≥60dB (APC) | ≥35dB | |
| Interchangeability | ≤0.2dB | ||
| Repeatability | ≤0.1dB | ||
| Durability | ≤0.2dB (1000 times) | ||
| Vibration | ≤0.2dB (550Hz 1.5mm) | ||
| Tensile Strength | > 10kg | ||
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | ||

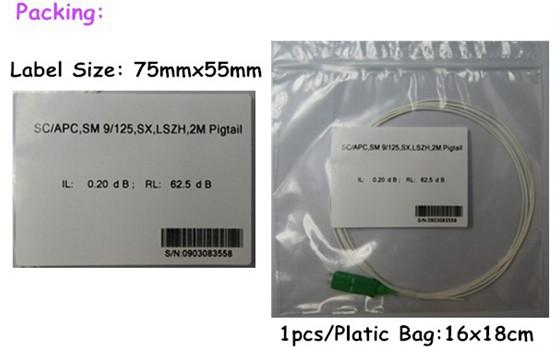

Packing:
More Products:
