PE Sheath Armored GYTC8S Figure 8 Fiber Optic Cable 24 Core Optical Fiber Cable
Price:
Negotiable
MOQ:
2KM
Delivery Time:
5-7 working days
Brand:
HG or OEM
Product Description

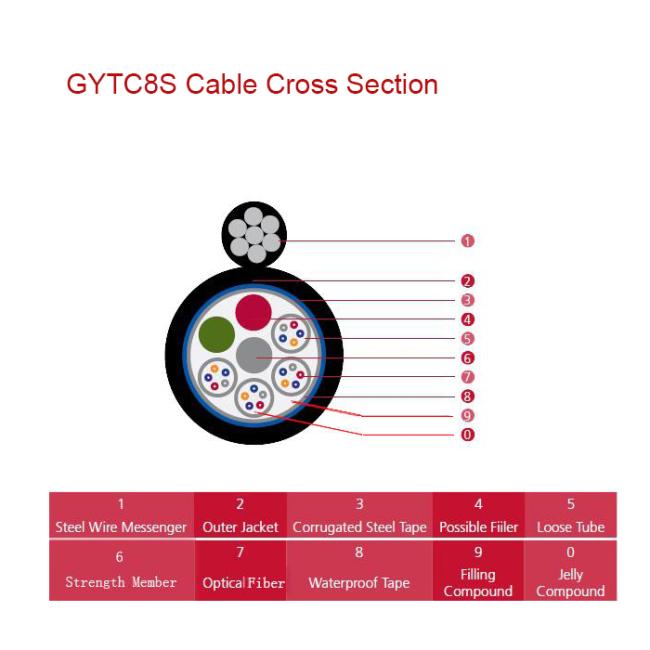

PE Sheath Armored GYTC8S Figure 8 Fiber Optic Cable 24 Core Optical Fiber Cable
Features(Armored Fiber Optic Cable):
1. Up to 288 Fiber Optic.
2. The loose tube stranding technology make the fibers have good secondary excess lenth and allow the fibers free movement in the tube. Which keeps the fiber stress-free while the cables is subjected to longitudinal stress.
3. Corrugated steel lape armored and PE outer sheath providing properity crush resistance and gun shot resistance features.
4. Stranded wires as sell supportiong member providing excellent strain performance and convenlent installation.
Fiber Specifications:
| Technical parameter of ITU-T G.652D (B1.3) single-mode optical fiber | |||
| Characteristics | Conditions | Specified Values | Units |
| Optical Characteristics | |||
| Mode field diameter (MFD) | 1310nm 1550nm |
9.2±0.4 10.4±0.8 |
µm µm |
| Cut-off wavelength (λcc) | ≤1260 | nm | |
| Attenuation coefficient | 1310nm 1383nm 1550nm |
<0.35 <0.35 <0.22 |
dB/km dB/km dB/km |
| Macro bending loss | φ75mm, 100circles, at 1550nm | ≤0.1 | dB |
| Attenuation non-uniformity | ≤0.05 | dB | |
| Dispersion coefficient | 1288~1339nm 1271~1360nm 1550nm |
≤3.5 ≤5.3 ≤18 |
Ps/(nm.km) Ps/(nm.km) Ps/(nm.km) |
| Zero dispersion wavelength | 1300~1324 | nm | |
| Max zero dispersion slope | ≤0.093 | Ps/(nm2.km) | |
| Group index of refraction (typical value) | 1310nm 1550nm |
1.466 1.467 |
|
| Geometric characteristic | |||
| Cladding diameter | 125.0±1.0 | µm | |
| Core/cladding concentricity error | ≤0.8 | µm | |
| Cladding non-circularity | ≤1.0 | % | |
| Coating diameter | 245.0±10 | µm | |
| Cladding/coating concentricity error | ≤12.0 | µm | |
| Coating non-circularity | ≤8 | % | |
| Diameter of colored coating | 250.0±15 | µm | |
| Mechanical characteristic | |||
| Curling (radius) | ≥4 | m | |
| Proof stress | >0.69 | Gpa | |
| Coating strip force | Average value Peak value |
1.0-5.0 1.3-8.9 |
N N |
| Dynamic stress corrosion susceptibility parameter (nd value) | ≥20 | ||
