Atlas Cradle Plate Profiles 280mm Wide Aluminium Extruded Profiles
Price:
Negotiable
MOQ:
500 Kilograms
Delivery Time:
3 DAYS
Brand:
HUANYU
Product Description

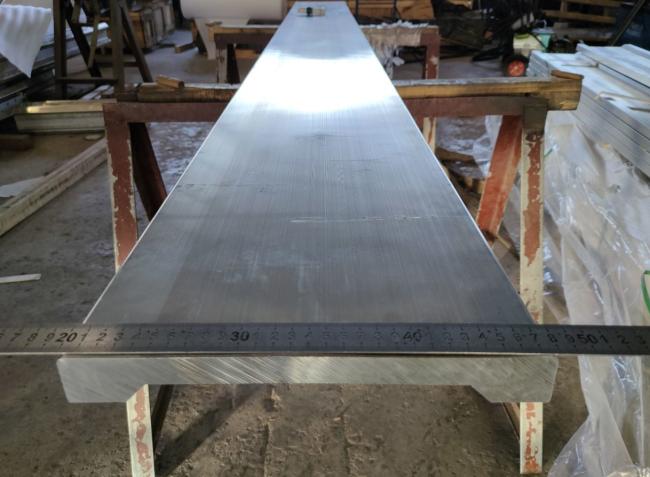

Atlas Cradle Plate Profiles 280mm Wide Aluminium Extruded Profiles
SPECIFICATIONS:
Width: 280mm tolerance -0 /+1mm
Thickness: 35mm , tolerance -0.5/+1.5 mm
Length: 3,000mm
Net Weight: 19.43KGS/Meter
Availability: 2,000Kilograms
Lead time: 3 days
FEATURES
7075 Aluminium Alloy
offers the highest strength of the common screw machine alloys.
The T6 and T651 tempers have fair machinability. Alloy 7075 is heavily utilized by the aircraft and ordnance industries because of its superior strength.
| 7075 Alloy Chemical Composition Limits | |||||||||||
| Weight% | Al | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other Each | Others Total |
| 7075 min | Rem | - | - | 1.2 | - | 2.1 | 0.18 | 5.1 | - | - | - |
| 7075 max | Rem | 0.40 | 0.50 | 2.0 | 0.30 | 2.9 | 0.28 | 6.1 | 0.20 | 0.05 | 0.15 |
7075 Aluminum Typical Physical Properties
| Characteristic | English | Metric |
| Nominal Density (68° F / 20°C) | 0.101 lbs./ in ³ | 2.80 Mg/m³ |
| Melting Range | 990° F - 1175° F | 532°C - 635 °C |
| Specific Heat (212 °F / 100°C | 0.23 BTU/lb - °F | 960 J/kg-°K |
