3128 0785 48 AND 3128 0785 49 HOLDER SET 6063 ALUMINUM HOLDER PROFILES PATINE PERFIL 3250MM ALUNINIUM EXTRUDED PROFILES

Name: 3128 0785 48 AND 3128 0785 49 HOLDER SET 6063 ALUMINUM HOLDER PROFILES PATINE PERFIL 3250MM ALUNINIUM EXTRUDED PROFILES
Brand: Chongqing Huanyu Aluminum Material Co., Ltd.

Price Negotiable

Price: NEGOTIABLE

MOQ: 200 SETS

Delivery Time: 7 days

Brand: HUANYU

Product Description

ATLAS EPIROC 6063 ALUMINUM HOLDER PROFILES PATINE PERFIL 3,250MM ALUNINIUM EXTRUDED PROFILES

(I) 405MM LONG holder sets

[A]

HOLDER SET 3128 3061 81 includes

(1) 3128 0784 39 aluminium holder (405mm long)

(2) 3128 3074 88 sliding pieces (2 pieces)

(3) 3128 0619 00 key (6 pieces)

[B]

HOLDER SET 3128 3061 80 includes

(1) 3128 0784 38 aluminium holder (405mm long)

(2) 3128 3074 88 sliding pieces (2 pieces)

(3) 3128 0619 00 key (6 pieces)

***********************************************************

(II) 200MM LONG holder sets

[A]

HOLDER SET 3128 3140 12 includes

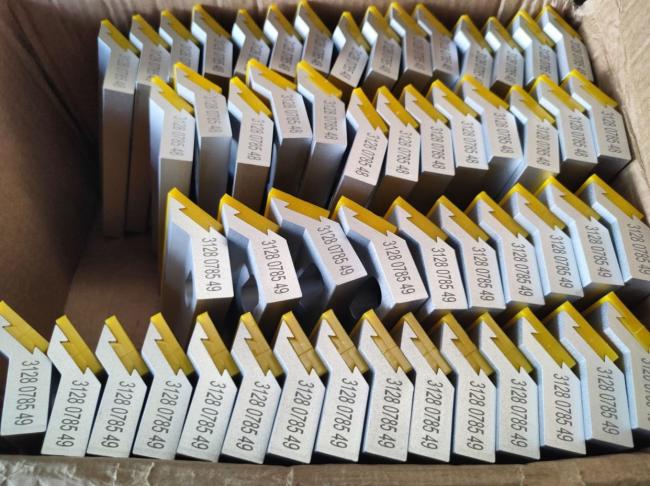

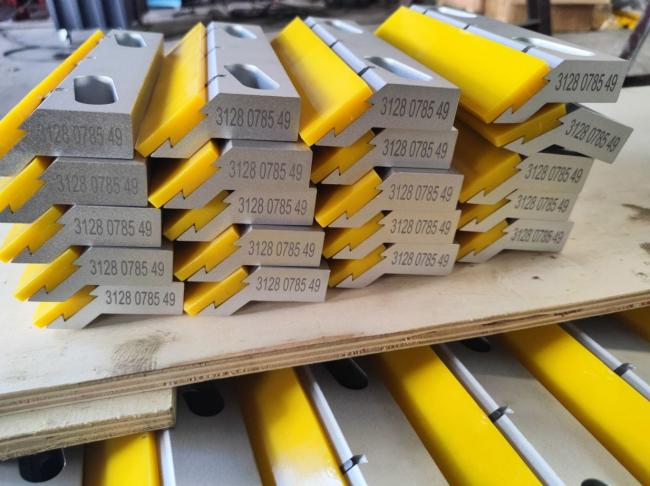

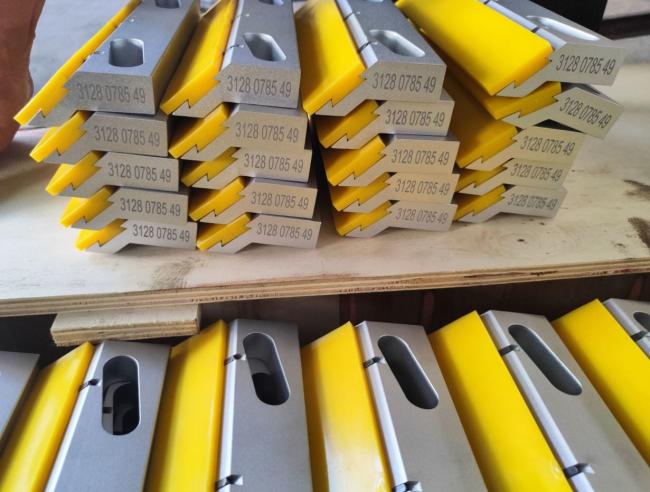

(1) 3128 0785 48 aluminium holder (200mm long)

(2) 3128 3039 30 / 3128 3074 88 sliding pieces (1 piece)

(3) 3128 0619 00 key (3 pieces)

[B]

HOLDER SET 3128 3140 13 includes

(1) 3128 0785 49 aluminium holder (200mm long)

(2) 3128 3039 30 / 3128 3074 88 sliding pieces (1 piece)

(3) 3128 0619 00 key (3 pieces)

Aluminium Extruded Profiles Used As Holder For 281 282 JUMBO BOOMER

Aluminium Holder Profiles suitable to produce
3128 0785 48
3128 0785 49
3128 0784 38
3128 0784 39

6063 is often called architectural aluminum for two reasons. First, it has a surface finish that is far smoother than the other commercially available alloys. Second, its strength is significantly less than most other aluminum alloys.

Specifications on High Strength 6063 T6 Extruded Profiles Used As Constructional Wall

Wall Thickness: 18.70mm

Shape: Customized

Length: 4200mm

**6063 Typical Chemical Composition %**
Weight %	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Each	Total
Minimum	0.20				0.45
Maximum	0.60	0.35	0.10	0.10	0.90	0.10	0.10	0.10	0.05	0.15

Remainder Aluminum

**6063 Typical Mechanical Properties**
Temper	Tensile					Hardness
	Ultimate		Yield		Elongation	Brinell
	KSI	MPA	KSI	MPA	%
T5, T52	27	186	21	145	12	60
T6	35	241	31	214	12	73
