Lightweight Thick Wall Aluminum Pipe / Alu 6061 T6 Aluminium Tube Pipe
High Strength Along With Lightweight And Corrosion Resistance 6061 T6 Thick Wall Aluminum Pipe

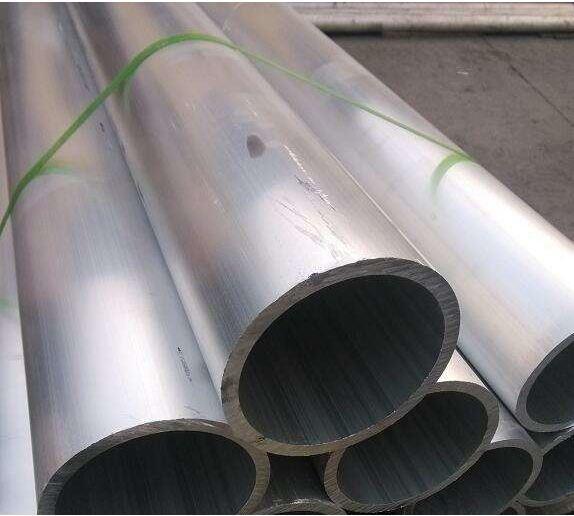

6061T6 Thick Wall Aluminum Pipe
is a round hollow aluminum extrusion, which is widely used for all types of fabrication projects related to concerns over strength along with lightweight and corrosion resistance - frame work, protective structures, sleeves, couplers, etc.
SPECIFICATIONS:
6061-T6
CHARACTERISTICS:
Welding = Excellent
Machining / Grinding = Good
Bending / Forming = Poor
Wear Resistance = Good
Corrosion Resistance = Good
MECHANICAL PROPERTIES:
Tensile Strength = 45000 psi; Yield Point = 40000 psi
Shear Strength = 30000 psi; Elasticity = 10000 psi
Elongation in 2" = 17%; Fatigue Limit = 14000 psi
Brinell Hardness = 95; Melting Point = 1220F
Parameters on 6061 6063 Thick Wall Aluminum Pipe:
|
product
|
model number
|
temper
|
outer diameter
|
wall thickness
|
length
|
|
round tube
|
1070A 1060 1050A 1035 1200 3003 3A21 5083 5052 5A02 5A05 5A06 8A06
|
o
|
6-320
|
0.5-10
|
1000-6000
|
|
HX4
|
6-320
|
0.5-10
|
1000-6000
|
||
|
HX8
|
6-320
|
0.5-10
|
1000-6000
|
||
|
H112 or F1
|
25-320
|
5-35
|
1000-6000
|
||
|
2A11 2A12 2024 6A02
|
O or T4
|
6-320
|
0.5-35
|
1000-6000
|
|
|
6061 6063 6082
|
H112 or T6
|
6-320
|
0.5-10
|
1000-6000
|
|
|
7A04 7A09 7075 7005
7020 |
H112 F1 or T6
|
2.5-320
|
5-35
|
1000-6000
|
|
|
square tube
|
1070A 1060 1050A 1035 1200 8A06 5A02 3A21
|
O
|
10~140*10~140
|
1-10
|
1000-6000
|
|
HX4
|
10~140*10~140
|
1-10
|
1000-6000
|
||
|
HX8
|
10~140*10~140
|
1-10
|
1000-6000
|
||
|
2A11 2A12 6A02 6A02
|
O
|
10~140*10~140
|
1-10
|
1000-6000
|
|
|
T4
|
10~140*10~140
|
1-10
|
1000-6000
|
||
|
T6
|
10~140*10~140
|
1-10
|
1000-6000
|
