High Corrosion Resistance Aluminum Round Tubing Easily Welded 6063 T4 Aluminum Tube Pipe
Excellent Corrosion Resistance And Can Be Easily Welded , 6063 T4 Extruded Aluminum Tube Aluminum Round Tubing

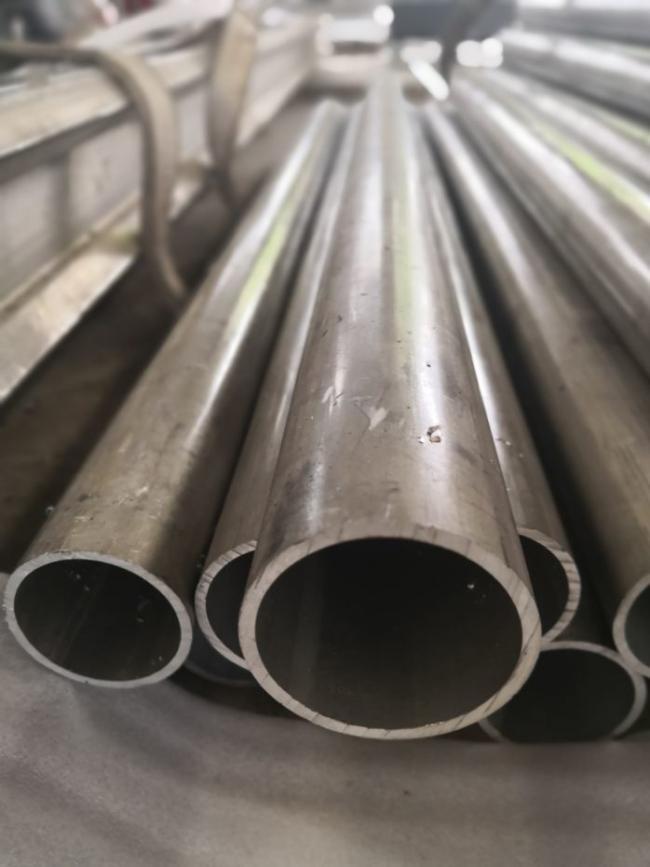

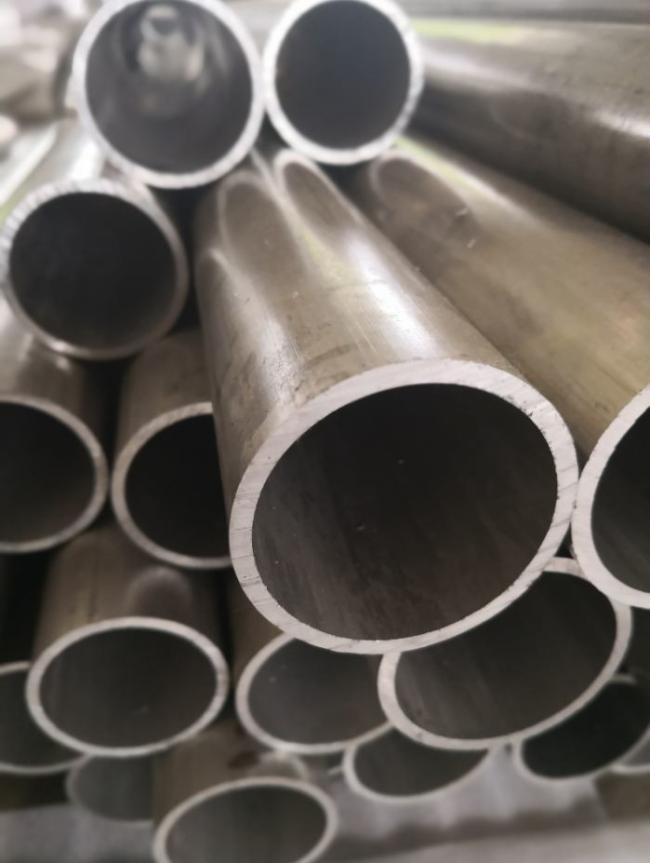

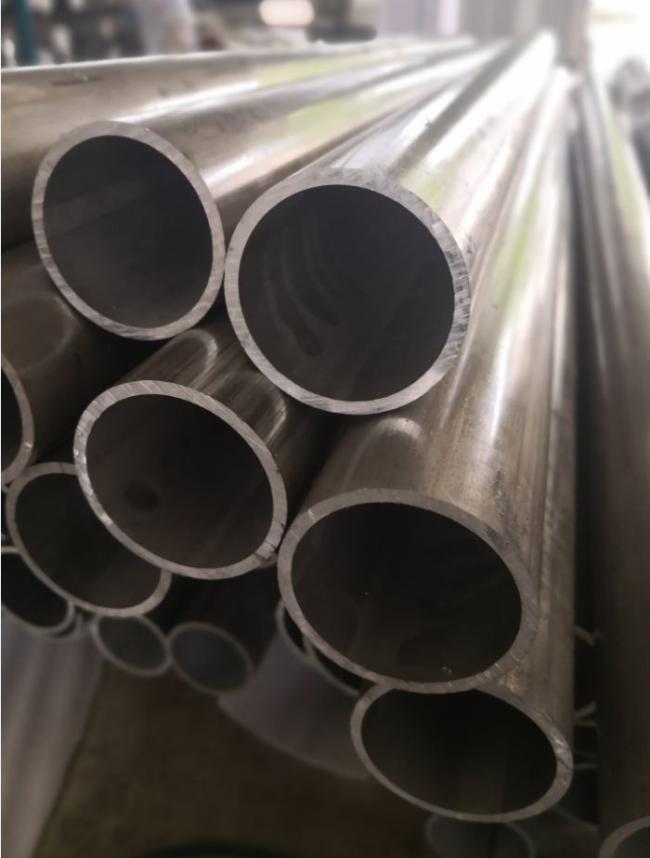

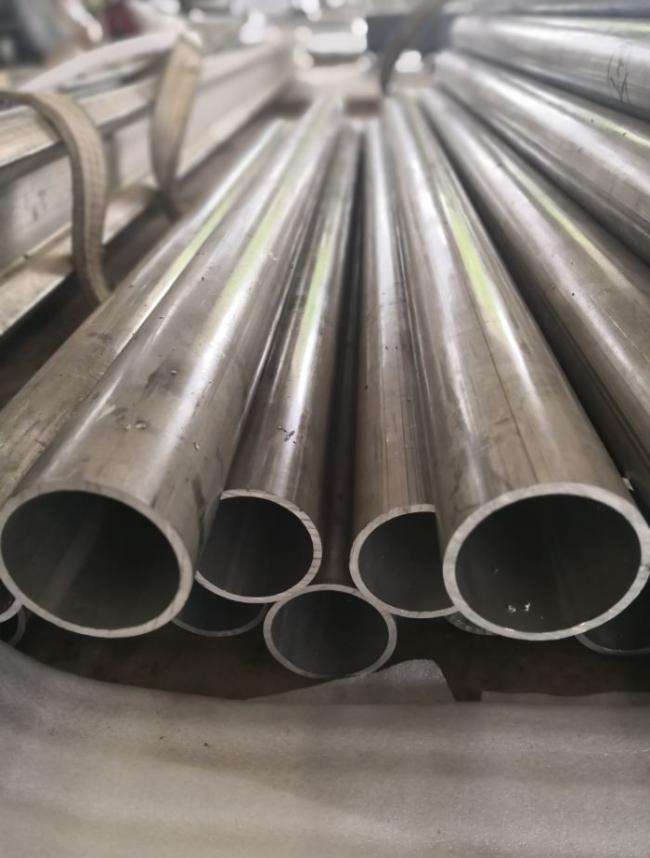

6063 T4 aluminum round tubing
is made from a popular heat treatable magnesium/silicon alloy.
6063 T4 aluminum round tubing has excellent corrosion resistance and weld- ability.
Due to its finer grain structure, this is an excellent alloy choice for anodizing.
Applications include air cylinder, electrical bus conductor and architectural.
Stocks Availability :
OD:25.4MM through 381MM
Walls: 2.0MM through 3.96MM
Shapes: Rounds
Tempers: T4, T6
MECHANICAL PROPERTIES:
Tensile Strength = 27 ksi (6063)
Yield Strength = 21 ksi (6063)
Elongation in 2" = 18% (6063)
Brinell Hardness = 60 (6063)
*Data provided for reference only
| Weight % | Si | Fe | Cu | Mn | Mg | CR | Zn | TI | Each | Total |
|---|---|---|---|---|---|---|---|---|---|---|
| Minimum | .020 | .45 | ||||||||
| Maximum | .60 | .35 | .10 | .10 | .90 | .010 | .10 | .10 | .05 | .15 |
Remainder Aluminum
| Temper | Tensile | ||||
|---|---|---|---|---|---|
| Ultimate | Yield | Elongation | |||
| KSI | MPA | KSI | MPA | % | |
| T4 | 25 | 170 | 13 | 90 | 22 |
| T6 | 35 | 240 | 31 | 215 | 12 |
