China Corrosion Resistance 2024 Seamless Aluminum Tubing High Strength Seamless Aluminum Pipe for sale

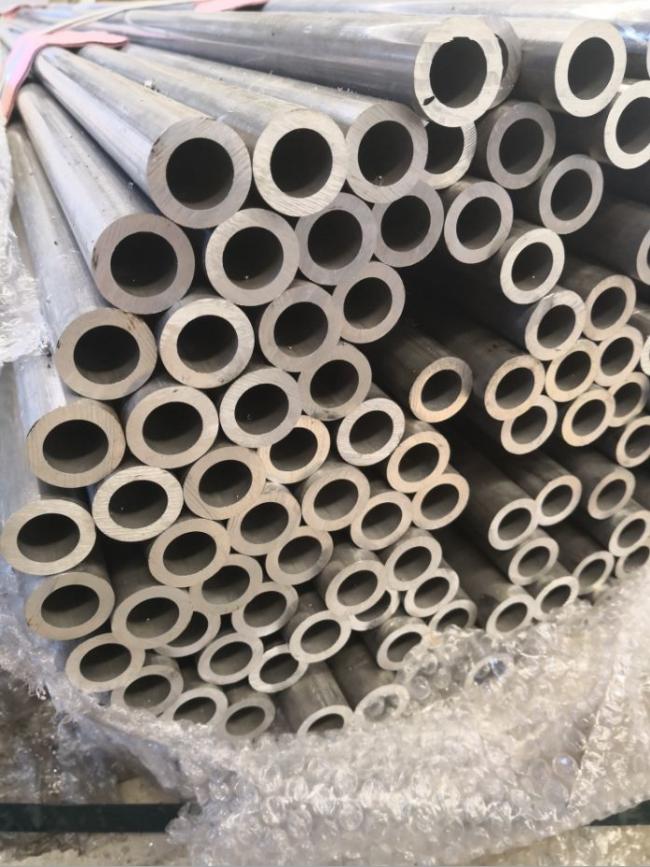

Corrosion Resistance 2024 Seamless Aluminum Tubing High Strength Seamless Aluminum Pipe

Price Negotiable
Price: Negotiable
MOQ: 1 metric tons
Delivery Time: 40 days
Brand: HUANYU
Product Description

High Strength Along With Lightweight And Corrosion Resistance 2024 Seamless Aluminum Tubing

2024 seamless aluminum tubing

is heavily utilized in aircraft applications due to good machining characteristics and higher strength than either 2014 or 2017. Cold formability is considered fair, yet it is one of the most popular alloys for high strength tubing requirements because of the superior grain structure that can be obtained.







Physical Properties

  Metric English Comments

Density 2.78 g/cc 0.1 lb/in³ AA; Typical

Mechanical Properties

Hardness, Brinell 47 47 AA; Typical; 500 g load; 10 mm ball
Ultimate Tensile Strength 186 MPa 27000 psi AA; Typical
Tensile Yield Strength 75.8 MPa 11000 psi AA; Typical
Elongation at Break 20 % 20 % AA; Typical; 1/16 in. (1.6 mm) Thickness
Elongation at Break 22 % 22 % AA; Typical; 1/2 in. (12.7 mm) Diameter
Modulus of Elasticity 73.1 GPa 10600 ksi AA; Typical; Average of tension and compression. Compression modulus is about 2% greater than tensile modulus.
Ultimate Bearing Strength 345 MPa 50000 psi Edge distance/pin diameter = 2.0
Bearing Yield Strength 131 MPa 19000 psi Edge distance/pin diameter = 2.0
Poisson's Ratio 0.33 0.33
Fatigue Strength 89.6 MPa 13000 psi AA; 500,000,000 cycles completely reversed stress; RR Moore machine/specimen
Machinability 30 % 30 % 0-100 Scale of Aluminum Alloys
Shear Modulus 28 GPa 4060 ksi
Shear Strength 124 MPa 18000 psi AA; Typical

Electrical Properties

Electrical Resistivity 3.49e-006 ohm-cm 3.49e-006 ohm-cm AA; Typical at 68 Degrees F

Thermal Properties

CTE, linear 68 Degrees F 23.2 µm/m- Degrees C 12.9 µin/in- Degrees F AA; Typical; Average over 68-212 Degrees F range.
CTE, linear 250 Degrees C 24.7 µm/m- Degrees C 13.7 µin/in- Degrees F Average over the range 20-300 Degrees C
Heat Capacity 0.875 J/g- Degrees C 0.209 BTU/lb- Degrees F
Thermal Conductivity 193 W/m-K 1340 BTU-in/hr-ft²- Degrees F AA; Typical at 77 Degrees F
Melting Point 502 - 638 Degrees C 935 - 1180 Degrees F AA; Typical range based on typical composition for wrought products 1/4 inch thickness or greater. Eutectic melting is not eliminated by homogenization.
Solidus 502 Degrees C 935 Degrees F AA; Typical
Liquidus 638 Degrees C 1180 Degrees F AA; Typical

Processing Properties

Annealing Temperature 413 Degrees C 775 Degrees F
Solution Temperature 256 Degrees C 493 Degrees F
