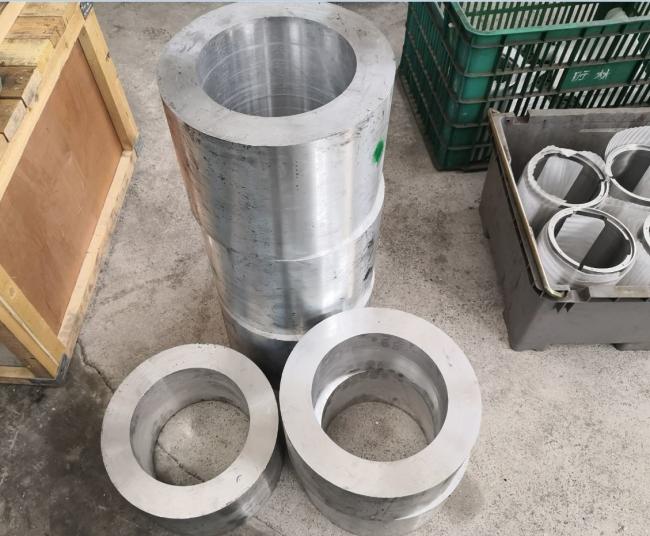

Mechanical OD 2 Feet 7075 T652 Aluminum Forging Parts
7075-T652 Aluminum Rolled Forged Ring High Ratio Weight - To - Strength Aluminum Forging Parts
7075-T652 aluminum forgings have good corrosion resistance and mechanical properties. It has high strength below 150 degrees and has particularly good low temperature strength.
The main alloying element of 7075 is zinc, which has high strength, good mechanical properties and anode reaction. Mainly used in the manufacture of aircraft structures and other high-stress structural parts that require high strength and strong corrosion resistance, such as aircraft upper and lower wing panels, stringers, etc. After solution treatment, the plasticity is good, and the heat treatment strengthening effect is good.
Mechanical Properties of 7075 Aluminum
Here we can see the tensile strength, yield strength, and modulus of elasticity for the alloy in the -O, -T6, and -T73 conditions.
| Property | 7075-O | 7075-T6, -T651 | 7075-T73, -T7351 |
|---|---|---|---|
| Tensile Strength | 228 MPa | 33000 psi | 572 MPa | 83000 psi | 505 MPa| 73200 psi |
| Yield Strength | 103 MPa | 15000 psi | 503 MPa | 73000 psi | 435 MPa | 63100 psi |
| Modulus of Elasticity | 71.7 GPa | 10400 ksi | 71.7 GPa | 10400 ksi | 72.0 GPa | 10400 ksi |
