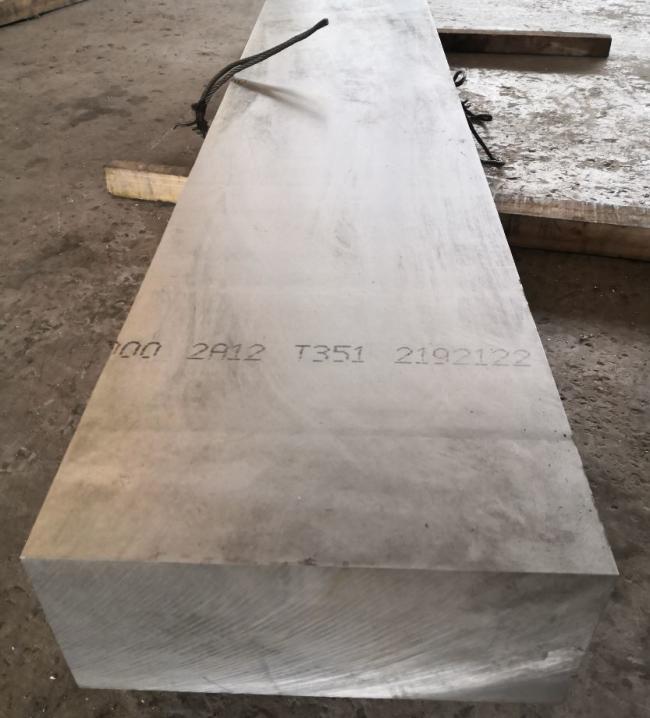

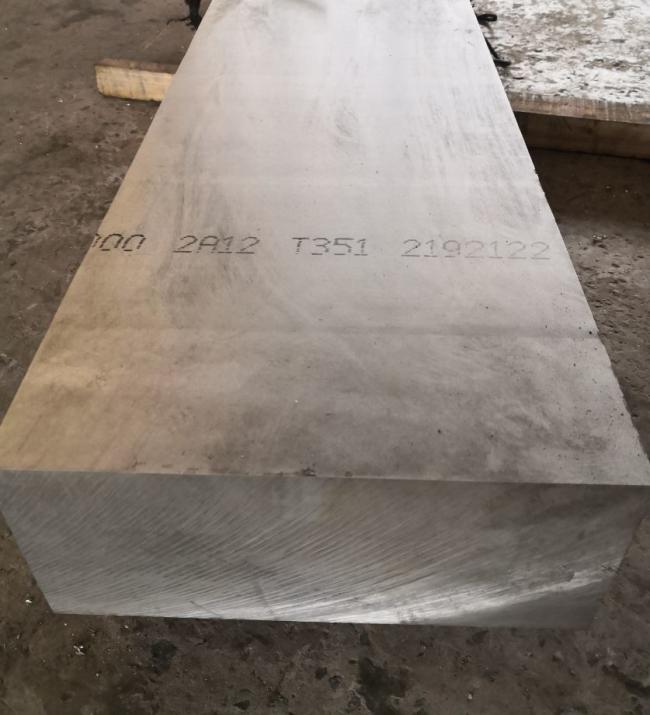

2A12 T351 Thickness 160mm Aircraft Grade Aluminum Sheet
Price:
Negotiable
MOQ:
1 metric ton
Delivery Time:
35 DAYS
Brand:
HUANYU
Product Description
2A12 T351 Thickness 160mm Aircraft Grade Aluminum Sheet Application On Airplane
2A12 is primarily alloyed with copper.
It also contains manganese and magnesium and can sometimes contain smaller amounts of silicon, iron, chromium, zinc and/or titanium.
It also contains manganese and magnesium and can sometimes contain smaller amounts of silicon, iron, chromium, zinc and/or titanium.
2024 alloy is often chosen for applications that require high strength
Characteristics On 2A12-T4 Aluminum Sheets / Plates
Thermal Conductivity: 151 W/m-K | 1050 BTU-in/hr-ft²-°F
Coefficient of Thermal Expansion @ 20.0 - 100 °C Temp: 23.2 µm/m-°C | 12.9 µin/in-°F
Tensile Strength: 66000 psi
Yield Strength:58000 psi
Modulus of Elasticity: 10500 ksi
TYPICAL CHEMISTRY LIMITS:
| Element | Minimum % | Maximum % |
|---|---|---|
| Silicon | No Min | 0.5 |
| Iron | No Min | 0.5 |
| Copper | 3.8 | 4.9 |
| Manganese | 0.5 | 0.6 |
| Magnesium | 1.2 | 1.8 |
| Chromium | No Min | 0.1 |
| Zinc | No Min | 0.25 |
| Titanium | No Min | 0.15 |
| Other Elements | No Min | 0.05 each 0.15 in total |
