Mill Finish 2024 T4 Aluminum Forged Discs Fatigue Resistance
MOQ:
1 METRIC TON
Delivery Time:
4 WEEKS
Brand:
HUANYU
Product Description

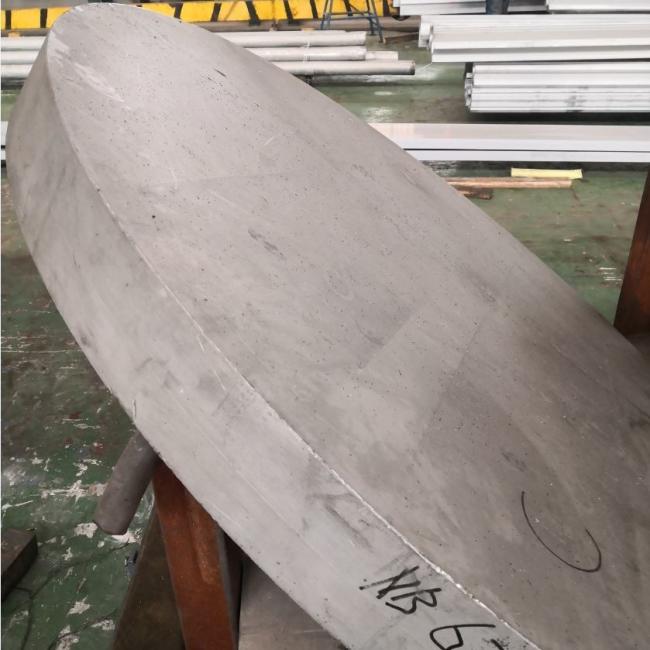

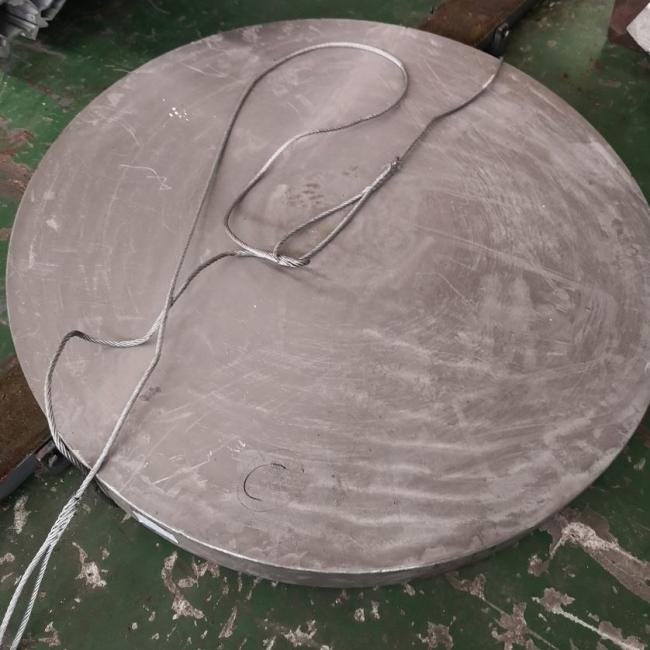

Diameter Span 2,850mm Mill Finish Aluminum Forging Parts 2024 T4 Aluminum Forged Discs
Specifications:
Diameter: 2,850mm
Thickness: 520mm
Material: ALUMINUM ALLOY 2024
Temper: T4
Features:
Aluminum 2024 is frequently used for aerospace structures where a high strength-to-weight ratio is necessary.
2024 aluminium alloy is non-magnetic and heat treatable. It is often found in bolts, gear shafts and wheels.
Chemical Components on 2024 T4 Aluminum Forged Discs:
| Weight % | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Each | Total |
|---|---|---|---|---|---|---|---|---|---|---|
| Minimum | 3.80 | 1.20 | 0.30 | |||||||
| Maximum | 0.50 | 0.50 | 4.90 | 1.80 | 0.90 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 |
Remainder Aluminum
| Temper | Tensile | Hardness | ||||
|---|---|---|---|---|---|---|
| Ultimate | Yield | Elongation | Brinell | |||
| KSI | MPA | KSI | MPA | % | ||
| T4, T351 | 68 | 469 | 47 | 324 | 19 | 120 |
