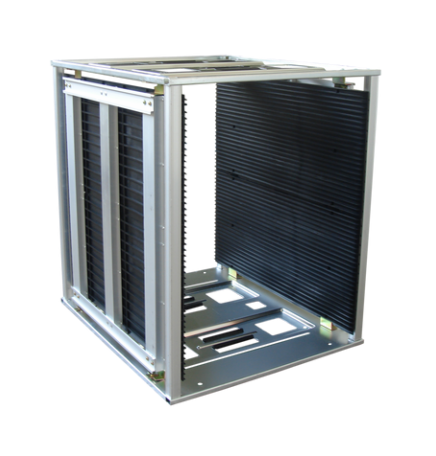

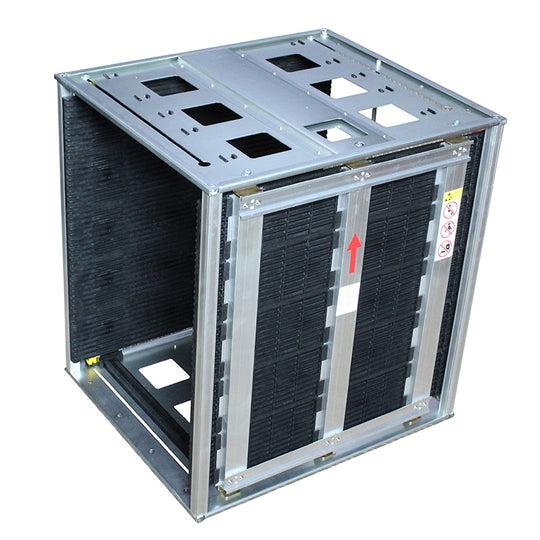

535*530*570 ESD SMT PCB Magazine Rack for SMT Line | ESD Safe PCB Storage
Price:
USD 35-50/ set
MOQ:
5
Delivery Time:
Negotiable
Brand:
Herzesd
Product Description
Reliable PCB magazine rack for SMT production lines. ESD-safe design, adjustable width, and durable structure for efficient PCB storage and transport.
Model: HZ-2609
Dimensions (L × W × H): 535 × 530 × 570 mm
Capacity: Up to 50 PCB plates
PCB Size Range: 535 × (120–460) mm
Guide Slot: Depth 4 mm, Width 5.5 mm, Pitch 10 mm
Material: Metal base (top & bottom)
Adjustment: Screw or gear rack adjustable
Side Plates: 5 pcs assembled
Weight: 12.0 kg
Temperature Resistance: 80°C / 120°C optiona
l
![]()
![]()
Our adjustable ESD PCB magazine rack is designed to accommodate various PCB sizes with flexible width settings. It ensures safe and efficient handling in ESD-sensitive environments.
Our adjustable ESD PCB magazine rack is designed to accommodate various PCB sizes with flexible width settings. It ensures safe and efficient handling in ESD-sensitive environments.Size Chart:
| Model | Outer size(mm) | PCB plate size(mm) | Base material | Adjust type | Temp. | Slots | Weight (KG) |
| HZ-2601 | 355*315*580 | 355*(80-250) | Plastic | Screw adjust. | 80℃ | 50 | 5 |
| HZ-2602 | 355*315*305 | 355*(80-250) | Plastic | Screw adjust. | 80℃ | 25 | 3.4 |
| HZ-2603 | 355*320*563 | 355* (50-250) | Metal | Screw / gear track | 80℃/120℃/200℃ | 50 | 5 |
| HZ-2604 | 355*320*563 | 355* (50-250) | Plastic | Gear track | 80℃/120℃ | 50 | 4.5 |
| HZ-2605 | 355*320*563 | 355* (50-250) | Metal | Screw / gear track | 80℃/120℃ | 50 | 6.5 |
| HZ-2606 | 355*320*563 | 355* (50-250) | Metal | Gear track | 80℃/120℃ | 50 | 6 |
| HZ-2607 | 460*400*563 | 460*(50-330) | Metal | Screw / gear track | 80℃/120℃/200℃ | 50 | 8 |
| HZ-2608 | 535*460*570 | 535*(50-390) | Metal | Screw / gear track | 80℃/120℃ | 50 | 10.5 |
| HZ-2609 | 535*530*570 | 535*(120-460) | Metal | Screw / gear track | 80℃/120℃ | 50 | 12 |
| HZ-2610 | 630*530*570 | 630*(50-460) | Metal | Screw adjust. | 80℃ | 50 | 13 |
| HZ-2611 | 355*320*560 | 355* (50-250) | Plastic | Chain adjust. | 80℃ | 50 | 6 |
| HZ-2612 | 355*320*560 | 355*(80-250) | Metal | Screw / gear track | 550℃ | 50 | 6.8 |
| HZ-2613 | 400*320*563 | 400*(50-250) | Metal | Screw / gear track | 80℃ | 50 | 6 |
