Waterproof PVC Vinyl Rigid Cord Flooring Tile Extrusion Machine

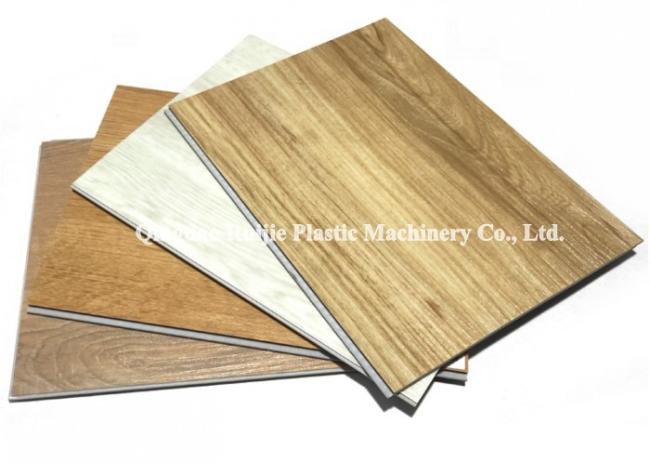

SPC floor also called hard PVC floor is a product first extruded the PVC substrate by conical double screw extruder, then laminate the PVC pattern film, PVC wearing layer and PVC basement film the same time by 4-roller press machine.The technique is simple, and the laminating is completed by heat, no need glue.

General description
1. Use raw materials : PVC ,Caco3 plus accessories

2. Final product: L=970㎜, δ=3-8㎜
3. Production line speed : 0-6m / min
4. Capacity: 700-800kg / h
5. Total installed power : 220kw
6. Power supply : AC380V ± 10%, 50HZ
7. Working temperature: 0-40 ° C

SPC floor Advantages

1, safety and environmental protection

2, waterproof and skid resistance

3, wear-resisting and fire resistance

4, weather resistance, corrosion resistance

5, luxury and beauty

6, installation convenience

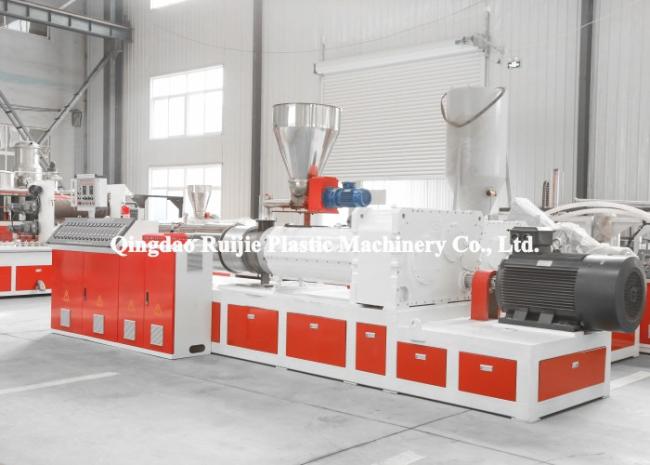

Each parts of Machine

1. Conical or Parallel twin screw extruder With auto-feeder 1 set
2. Electrical control system 1 set  (ABB inverter, Siemens contactor, Omron temperature control table.)

3. Hanger plate mold 1050 1 set
4. Four or five roller calender 1 set  (with automatic oil temperature control device)
5. Cooling bracket and trimming device 1 set
6. Traction machine 1 set

7. Cutting plate machine 1 set
8. Auto-stacker 1 set
