Automatic Plastic Profile Extrusion Line Wpc External Profile Extrusion Manufacturing Machine

Price Negotiable

MOQ: 1set

Delivery Time: 30 working days

Brand: Ruijie

Product Description

Automatic Plastic Profile Extrusion Line Wpc External Profile Extrusion Manufacturing Machine

Detail descriptions;

1. extruder specification

Model	YF180	YF240	YF300	YF400	YF500	YF600
Max. width of product(mm)	180	240	300	400	500	600
Extruder model	SJSZ55/110	SJSZ65/132	SJSZ65/132	SJSZ65/132	SJSZ80/156	SJZ80/156
Max. extrusion capacity(kg/h)	150	250	250	250	360	360
Extruder power(kw)	22	30/37	30/37	30/37	55	55
Cooling water(M3/h)	5	7	7	8	10	12
Compressed air(M3/min)	0.2	0.3	0.3	0.3	0.4	0.5

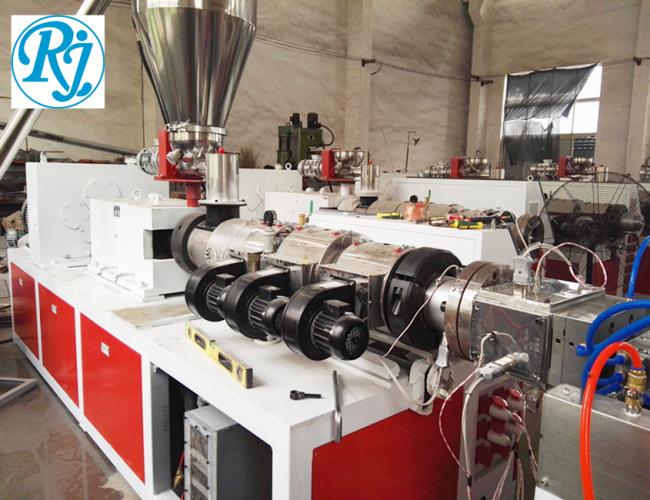

This conical twin screw extruder is qualified for pe, pp, pvc,wpc powder extrusion directly to produce various kinds of plastic profile.

2. full set of mould can safisfy different kinds of profile production(max profile width is 600mm)

3. high level vacuum extent

5. automatic length accounting device for precise cutting

5. saw cutting machine ,adopt advanced Germany technology

6. stainless steel and pneumatic controlled

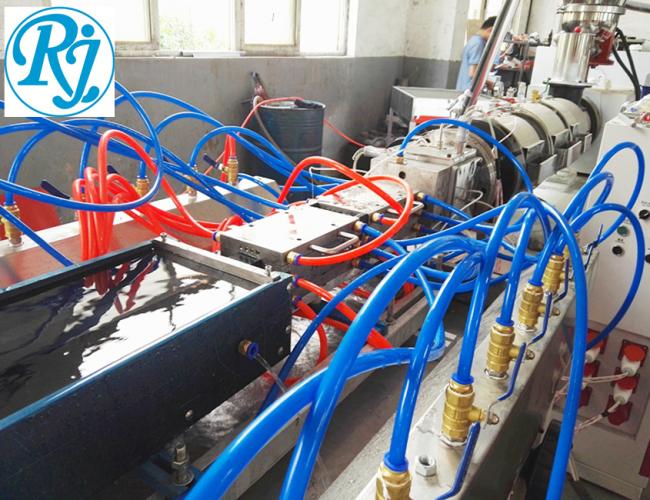

Production line configuration reference

Item	component	quantity
1.	double screw extruder	1set
2.	mould	whole 1set

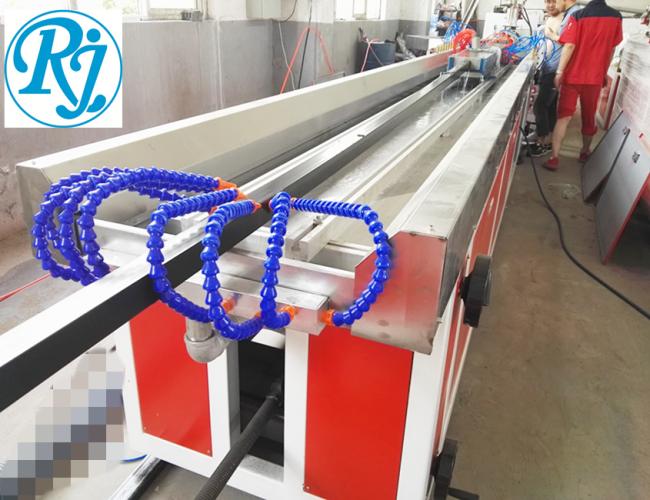

3.	vacuum calibration tank	1set
4.	hauling machine	1set
5.	cutter	1set
6.	stacker	1set

Main Features on WPC PE PP PVC profile co-extrusion machine

wood plastic composite decking roofing flooring extrusion production line

1) Use PP/ PE/ PVC resin powder+wood powder material to extrude plastic wooden deck decking plate.

2) Outlook complete and unify, SIEMENS PLC digital control,

3) High-efficiency conical screw and special design of mould and calibrator make the machine performance is more reliable, and the products are more stable.
4) Large output extrusion capacity with stable performance.
5) The wood plastic door has good processablility as wood whick can be sawed, drilled, planed by wood working tools.
6) Also wooden door has excellent features of heavy acid bases resistance, water-proofing, corrosion resisting, anti-moth, anti-aging, static-free and flame retarded. Very important factors for wood products.
