Medical Sanitary 600mm Non Woven Fabric Production Line
600mm Non-spinning melt-spraying cloth machine, 400mm Melt blown cloth extrusion line, Non-woven fabric production line
The main raw material for the fused cloth is polypropylene. It is a fiber diameter in about 2 microns of ultra-fine electrostatic fiber cloth. Its diameter is only one-tenth of the diameter of the outer fiber of the mask, which can effectively capture dust. Virus droplets near the spray cloth, and will be electrostatic adsorption on the surface, not through. Therefore, it is necessary to produce filter function masks

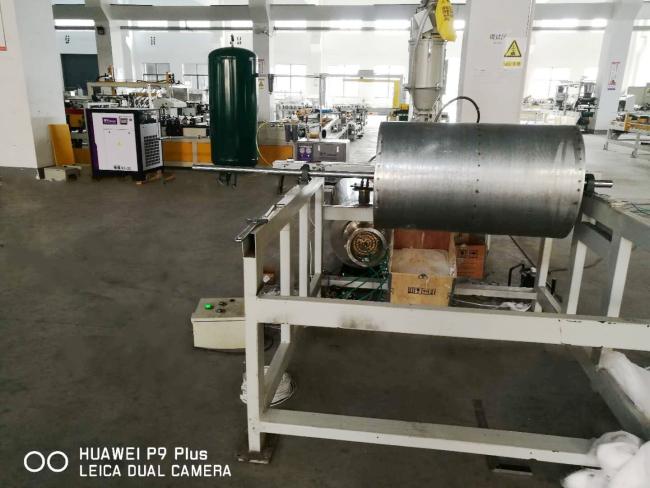

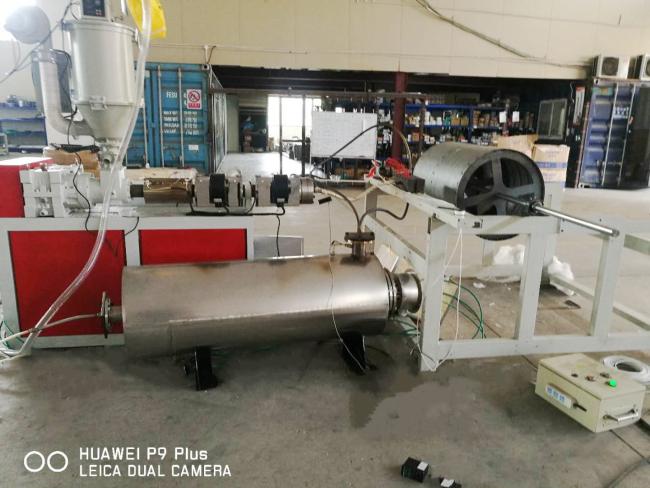

600mm meltblown nonwoven machine is a small-scale PP melt blown non-woven fabric production line. The melt blown production line is based on the synthesis of high polymer as raw material, which is directly meshed after melt spinning to form a unique melt blown non-woven fabric. It is widely used in mask filter material, heat preservation filling material, medical sanitary material, wiping material, etc.
| No. | Item name | spec | qty |
| 1 | Single screw extruder | SJ-45/30 | 1set |
| 2 | Head and spraying plate | 650mm | 1set |
| 3 | Air heating system | 1set | |
| 4 | Netting system | 1set | |
| 5 | Cloth winder | 1set | |
| Total power | 30 kw | ||
| Output capacity | 10-20 kg/h | ||
| Length of line | 14-16 meters | ||
