HDPE double wall corrugated pipe making machine, HDPE DWC tube forming machine, PE double wall bellow making machine

RJ-800(inner diameter Φ20-800mm) HDPE double wall corrugated drainage pipe production line making machine has two single-screw extruder. It has a dual-channel structure and nitriding polishing head. The forming machine of the corrugated pipe production line adopts horizontal structure, chain drive design, advanced water cooling system, vacuum forming system, automatic lubrication system and advanced double-layer on-line expansion function. The material of the molds is aluminum alloy. The complete automatic corrugated pipe machine uses the German Siemens production of professional PLC control system. The hdpe corrugated pipe making machine has a high degree of automation, reliable operation, easy operation and so on. The pipe made by the double wall corrugated pipe machine is widely used as the drain pipe.

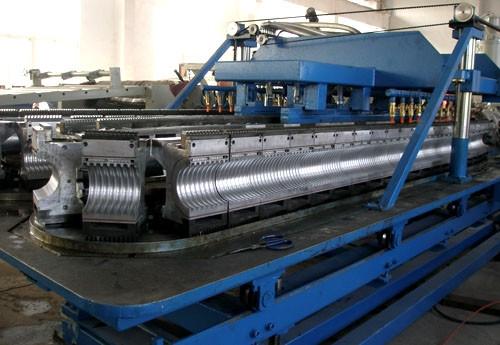

It is mainly composed of the extruder, extruder die-head, corrugated pipe forming machine, forming machine chain mould, and winding machine can be added if customers need.

Use: single wall flexible corrugated pipe machine has features of high temperature resistance,resistant to corrosion and abrasion,high intensity,good flexibility,etc.

Features: They are widely used in fields of auto wire,electric thread-passing pipes,circuit of machine tool,protective pipes of lamps and lanterns wire,tubes of air conditioner and washing machine,etc.
