PLC Control Water Resistant Pvc Door Making Machine
WPC antisepsis door board making machine, Imitation wood board machine, Water Resistant Bathroom Door Making Machine

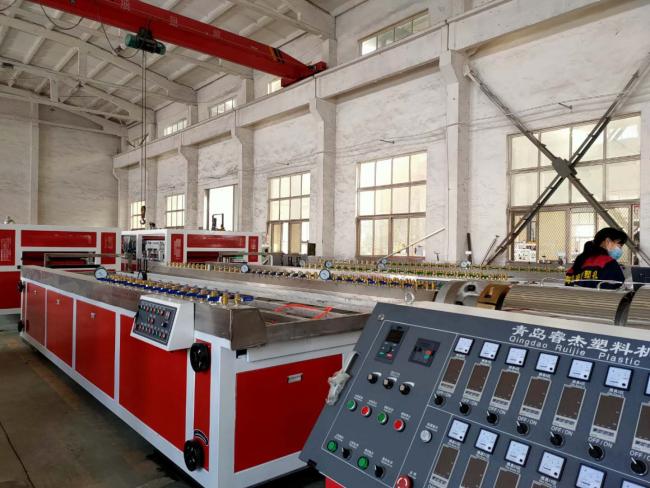

The production line can produce the PVC plastic-wood hollow door board of the with between 600 and 1200.The device has SJZ92/188 conical twin screw extruder, hollow door mould, calibration,hall off unit,cutter, and stacker.
1. Description of wood plastic hollow door board production line:
Material: PVC resin +wood powder +calcium carbonate+other nontoxic additives.
Finished product:
Size: 600mm, 800mm,1000mm,1200mm
Thickness:5mm-30mm
Use for Door ,Wall decoration, kitchen cabinet , construction board, advertising board ,furniture, and so on.
Main technical parameter:
| 2. Technical parameter | ||||||
| Model | ZX600 | ZX800 | ZX1000 | ZX1200 | ||
| Max.width of product(mm) | 600 | 800 | 1000 | 1200 | ||
| Extruder mode | SZJ80/156 | SZJ80/156 | SZJ92/188 | SZJ92/188 | ||
| Extrusion capacity(kg/h) | 280 | 280 | 600 | 600 | ||
| Motor power(kw) | 55 | 55 | 132 | 132 | ||
| Cooling water(cubic meter per hour) | 10 | 12 | 15 | 18 | ||
| Compressed Air (cubic meter per minite) | 0.6 | 0.8 | 1.0 | 1.2 | ||
| 3. Main Composition List | ||||||
| Item | Quantity | |||||
| SJSZ- XX Twin Screw Extruder with Automatic Feeding System | One set | |||||
| Die Mold & Stock Mold | One set | |||||
| Vacuum Calibrarion Table | One set | |||||
| Traction Machine | One set | |||||
| Cutting Machine | One set | |||||
| Automatic Stacker | One set | |||||
| Electric Control System | One set | |||||
Machine technology data:
| TYPE | PVC/WPVC DOOR PANEL EXTRUSION MACHINE | ||
| Auxiliary machine | YF800 | YF1000 | YF1250 |
| Max products width(MM) | 800 | 1000 | 1250 |
| Extruder type | SJZ80/156 | SJZ92/188 | SJZ92/188 |
| Extruder power(KW) | 55 | 132 | 132 |
| Max capacity(kg/h) | 280 | 600 | 600 |
| Water (M^3/h) | 12 | 15 | 18 |
| Gas supplier(m^3/min) | 0.8 | 1 | 1.2 |
Advantages of WPC door:
The rigid good excellent physical property is better than wood dimensional stability. These doors won't crack, warpin, or twill. Third, WPC doors have good flame retardant performance. To a great extent play the role of fire prevention.
