China 6m/Min Double Screw 75KW PVC Pipe Making Machine for sale

6m/Min Double Screw 75KW PVC Pipe Making Machine

Price Negotiable

MOQ: 1set

Delivery Time: 30 working days

Brand: Ruijie

Product Description

PVC pipe making machine, PVC tube production line, UPVC pipe machine

Process flow:

PVC powder + additive → mixing → spring feeding → twin screw extruder → mould → vacuum calibration machine → haul off machine → cutting machine → stacker or automatic belling machine

Main parameter of pvc pipe plastic machine

Mode	Pipe range (mm)	extruders	Max. output (kg/h)	Max. speed (m/min)	Total power (kw)	Line length (m)
PVC-50x2	16-50	SJSZ51/105	150	6m	60w	20m
PVC-63	16-63	SJSZ45/90	120	10m	45w	20m
PVC-110	50-110	SJSZ51/105	150	6m	60w	24m
PVC-160	63-160	SJSZ65/132	300	5m	100w	24m
PVC-250	110-250	SJSZ80/156	400	3.5m	120w	28m
PVC-315	160-315	SJSZ 80/156	400	3m	160w	28m
PVC-450	250-450	SJSZ 92/188	700	1.5m	200w	36m
PVC-630	315-630	SJSZ92/188	700	0.9	230kw	36m

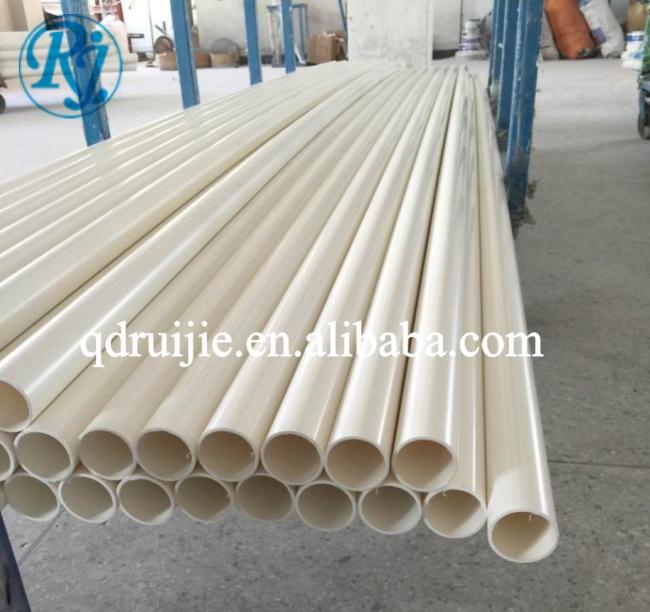

PVC pipe extrusion line is mainly used in the production of pressure water pipes, agriculture irrigation, building or city drainage and Sewage and constructional plumbing cable laying etc.

Detail Specification

Feeder	• To feed material into extruder
Extruder	• World famous brand electrical component such as Siemens, Schneider, ABB etc •High torque gearbox with adopts NSK/SKF bearing; •Siemens/WEG original motor achieved global after service; • Bimetallic screw and barrel; • Intelligent PLC controlling system with human-friendly interface.
Die head	• 40Cr material •Complete set include extrusion die head, Slotting & water ring type calibration sleeve • Apply to PVC single,dual,Four cavity extrusion.
Vacuum calibration tank	• Include full set of vacuum and water pump • length 9000mm
Haul off	• Upper and lower caterpillar is driven separately by the frequency inverter
Planetary Saw Cutter	• Planetary saw cutter:enter knife by hydraulic drive • Cutting saw: steel alloy, specific for cutting U-PVC pipe. • Equipped cast aluminum compacted block for accurate cutting • Synchronous control
Belling machine	• Blow type: internal air blow and external mould compacted calibration, make U, R and Z type sockets; • Siemens PLC controlling:Automation& Remote Function: for centralized Controlling

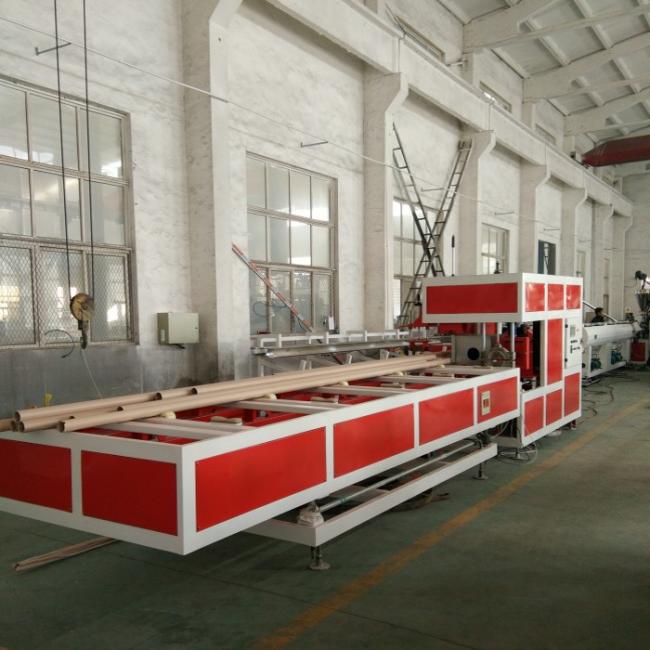

Tipping table	•Stainless steel 304 as touching material •Discharge driving by air cylinder
