Medical Sanitary 600mm Width Non Woven Fabric Production Line, PP Melt Blown Non Woven Filtering Fabric Making Machine
Medical Sanitary 600mm Width Non-Woven Fabric Production Line, PP Melt Blown Non-Woven Filtering Fabric Making Machine
The main raw material for the fused cloth is polypropylene. It is a fiber diameter in about 2 microns of ultra-fine electrostatic fiber cloth. Its diameter is only one-tenth of the diameter of the outer fiber of the mask, which can effectively capture dust. Virus droplets near the spray cloth, and will be electrostatic adsorption on the surface, not through. Therefore, it is necessary to produce filter function masks

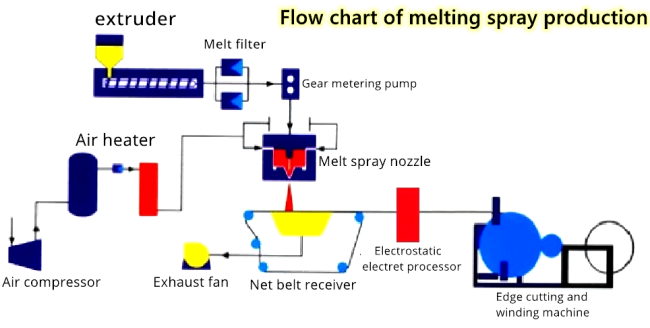

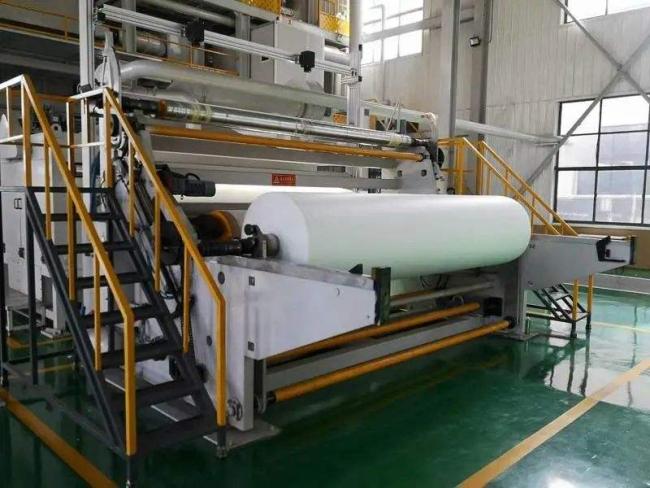

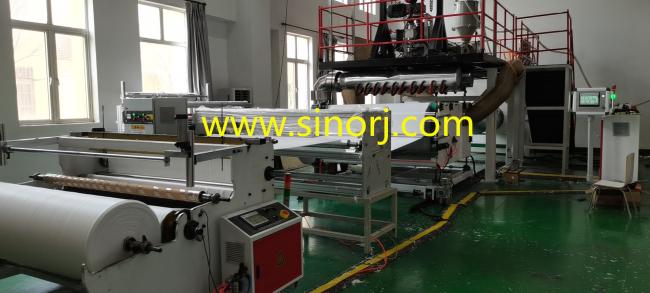

600mm melt-blown nonwoven machine is a small-scale PP melt-blown non-woven fabric production line. The melt-blown production line is based on the synthesis of the high polymer as raw material, which is directly meshed after melt spinning to form a unique melt-blown non-woven fabric. It is widely used in the mask filter material, heat preservation filling material, medical sanitary material, wiping material, etc.
| No. | Item name | spec | qty |
| 1 | Single screw extruder | SJ-65/30 | 1set |
| 2 | Automatic screen exchanger and melting pump | 1set | |
| 3 | mold | 650mm | 1set |
| spraying plate | 650mm | 2 sets | |
| 4 | Air heating system | 1set | |
| 5 | Netting system | 1set | |
| 6 | Electrostatic station | 1set | |
| 7 | Cloth winder | 1set | |
| 8 | Vacuum incinerator | 1set | |
| 9 | Ultrasonic cleaner | 1set | |
| Output capacity | 10-15kg/h | ||
