Extruded PLC Control WPC Door Foam Board Machine
PLC control WPC Foam Door Board Machine of super thick and light easy to process
WPC foam door machine introduction

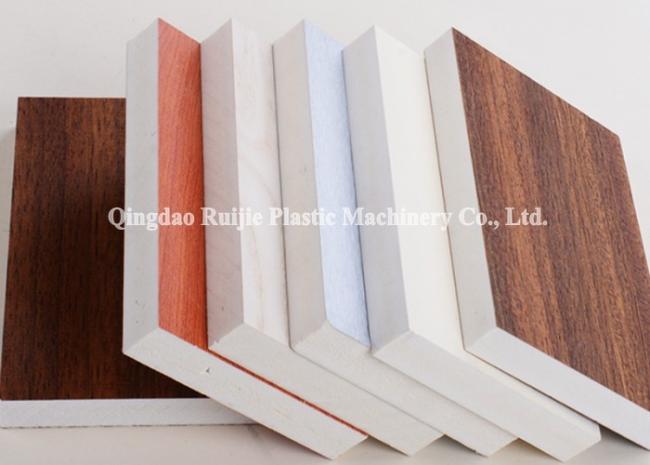

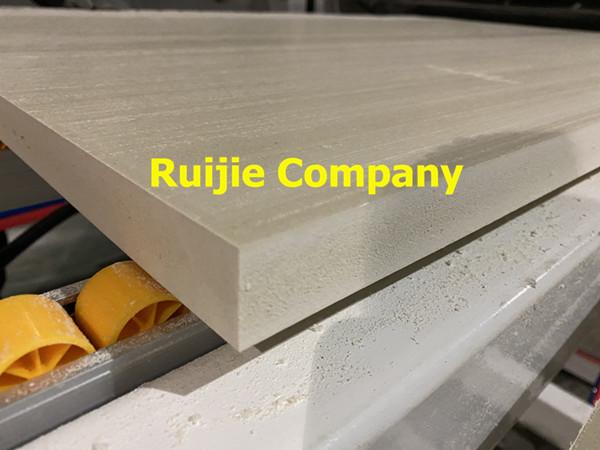

PVC foam board also named Snowboard and Andy board, the chemical component is polyvinyl chloride, which also can be named foam polyvinyl chloride board. PVC Semi-Skinning foam manufacturing technique is to combine free foam technique and semi-skinning foam to develop new technology, this equipment has advanced structure, simple formulation, easy operation, etc. features.
Features of WPC foam door machine
1. The specially designed screws ensure a high plastification rate.
2. The precise temperature control and special modules ensure precise thickness and flatness control.
3. The thickness of the sheet is precisely adjustable by screws & oil pressure wheels.
4. The machine equipped with a meter counter can set the length of the board precisely.
5. Through printing or sticking film on the surface, the board can be used in furniture & fixture, bathroom, construction Industry, decoration material, advertising materials, automobiles, etc.
Configuration list

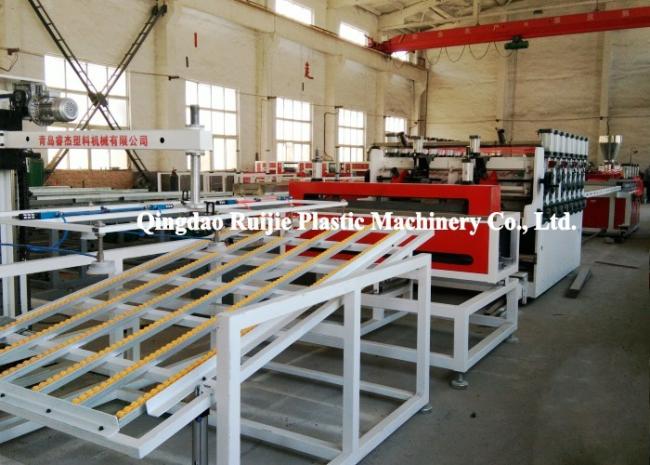

Working flow of pvc foam board production line
Raw material → Autoloade for mixer → PVC mixer → Sping loader → Conical twin screw extruder
→ Board Mould → Die Lip temperature control system → Pvc board forming machine → Air
cooling bracket → Board hauling off unit → Board Cutting unit → Dust vacuuming unit → Board
stacker → Electric control box
Detailed specification
| Extruder | Size: | SJSZ | 80/156 or 92/188 |
| Main motor power | kw | 75 | |
| Max Capacity | kg/h | 400-800 | |
| Mould | Mould width | mm | 1320 or 1000 |
| &Calibration mould | Mould thickness | mm | 3-20 or 3-25 |

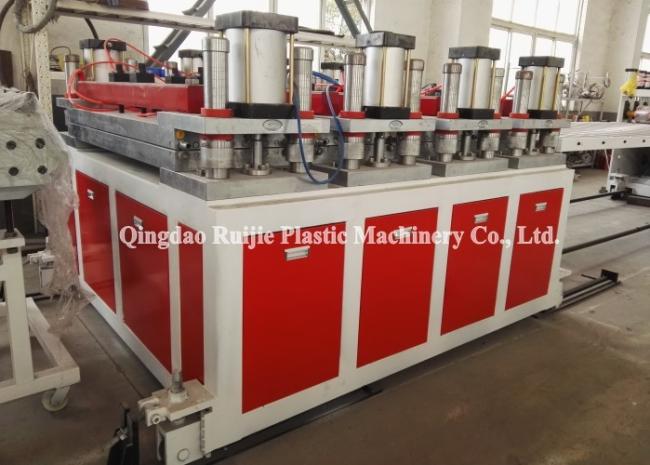

| Calibration mould Dimension | mm | 100×600×1500 | |
| Cooling bracket | Roller | mm | Φ76×1500 |
| Roller quantity | pcs | 9 | |
| Length | mm | 5000 | |
| Haul off machine | Diameter of roller | mm | 210×1500 |
| (control by the chain ) | Haul off speed | m/min | 0-2 |
| Motor power | kw | 11 | |
| Haul off machine | Diameter of roller | mm | 210×1500 |
| (control by gear) | Haul off speed | m/min | 0-1.6 |
| Motor power | kw | 8.8 | |
| Side trimming parts | Motor | kw | 1.5*2 |
| Blade diameter | mm | 305 | |
| Cutter | Max cut width | mm | 1400 |
| Max cut thickness | mm | 30 | |
| Cutter motor | kw | 3 | |
| Stacker | L×W×H | mm | 2500×1750×1000 |
| Roller | mm | Φ76×1500 | |
| Roller quantity | pcs | 6 |
