200mm Ceiling Panel Pvc Board Making Machine 37kw

Price Negotiable

Price: Negotiable

MOQ: 1set

Delivery Time: 30 working days

Brand: Ruijie

Product Description

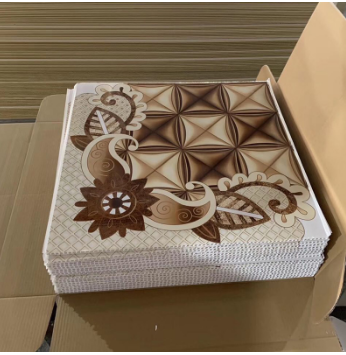

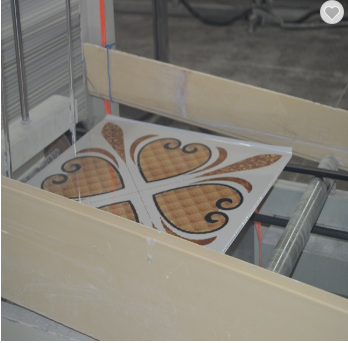

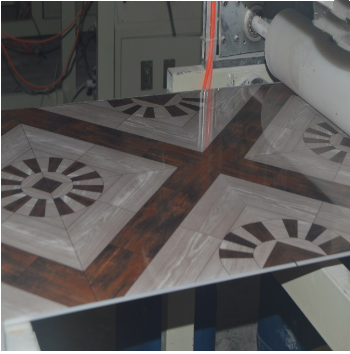

600*600mm Square PVC Ceiling Roof Tile Production Line

It is mainly for PVC square ceiling panel production. The electrical system has mainly applied imported parts, it has multiple alarm system, and there are few problems which can be easily eliminated. The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, and temperature control tolerance can be ± 1 degree.

This PVC Ceiling Panel Production Line can also produce different kinds of PVC WPC profile by changing molds, for example, wall panel,window, door and door frame, pallet, etc.

Materials: PVC+ calcium powder+other additives.

			Model

			SJSZ-65/132

			Sheet size

			603*603*7mm

			Material

			PVC Resin

			Main motor

			37kw

			Cutter

			Fixed-length cutting machine

			Stacker

			2 meters length

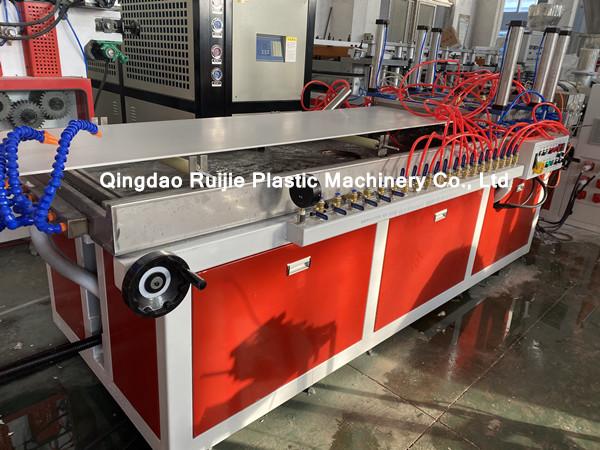

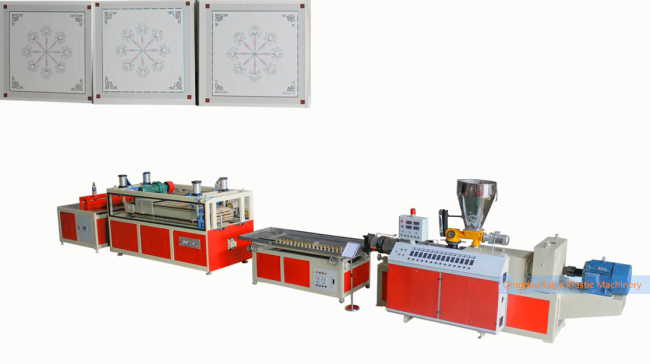

The line components1. Double screws extruder (SJSZ51/105-65/132)

2. Vacuum calibration tank

3. Haul off machine

4. Cutting machine

5. Auto stacker

7. Mixer machine
  Crusher machine
  Miller machine is also optional for your real needs.

			Product Name
			PVC panel, PVC ceiling, PVC ceiling panel making machine

			Brand
			Ruijie

			Material
			Pure PVC resin

			Specification
			PVC ratio:35%--65%

			Width:
			595*595cm,603*603cm

			Thickness:
			6mm,6.8mm,7mm, ,8mm,9mm,10mm

			Surface
Treatment

			Oil printing, colored painting, transferred, roller painting, and polishing. high intensity, resist erosion, good flexibility, lines or golden line on the surface.

			Function
			As decorative materials indoor on the ceiling, it’s waterproof fireproof, heat-moisture, damp-proof and etc.

			Application
			Kitchen, washroom, school, commercial buildings, public places with indoors as the ceiling.
