Diameter 63mm PPR PE Coil Pipe Extrusion Machine PLC Control

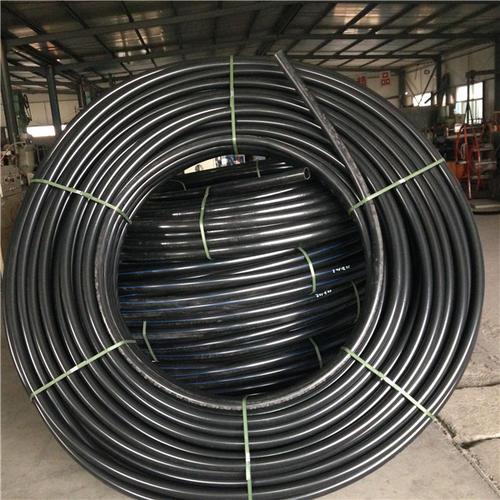

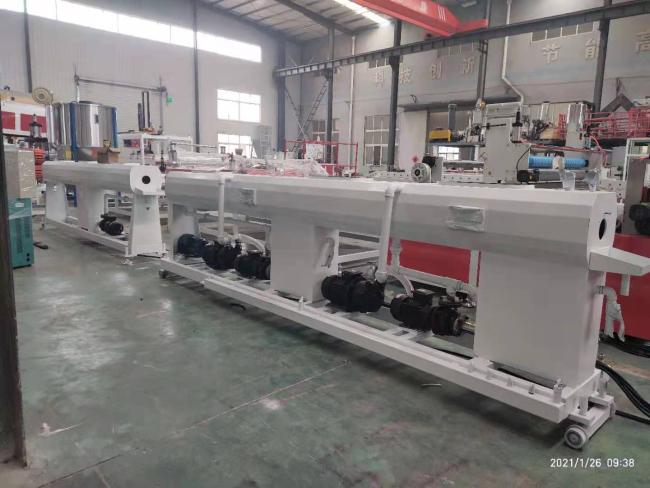

PE small diameter pipe making machine, PE coil pipe production line
1. It is widely used in producing PPR, PE, PP water-supply/floor heating/electric pipes, this pipe will install easy, low price and green, lightweight, safe and clean, resistant heat, corrupt, save heat and long usage.
2. With one or two other extruders, this single layer pipe production line can also produce two or three or more layers of pipe.
3. The multi-layer pipe production line is very popular now, take the 3-layer pipe production line, for example, the inner and outer layers use new raw material, and the middle layer uses recycled plastic(+ fiberglass material), this design highly increases the strength and tensile of pipes, at the same time lower the production cost.
Main Technical standards
| model | SJG-Z65×33-63 | SJG-Z90×33-160 |
| pipe dia(mm) | Φ16-Φ63 | Φ75-Φ160 |
| screw dia(MM) | Φ65 | Φ65 |
| screw L/D ratio | 33 | 33 |
| screw rotation speed (r/min) | 10-120 | 10-120 |
| production capacity(kg/h) | 30-150 | 50-200 |
| hauling-off speed(m/min) | 15 | 4 |
