17*33.5mm CR17335SE LiMnO2 Battery 1800mAh 2/3A Size
Li-MnO2 Battery CR17335SE Lithium Primary Battery 3.0V 1800mAh 2/3A Size for Medical Instruements
- High voltage: open circuit voltage is above 3.0V, operation voltage can reach 2.8V~3.2V.
- High energy density: battery enery density can reach 400wh/kg.

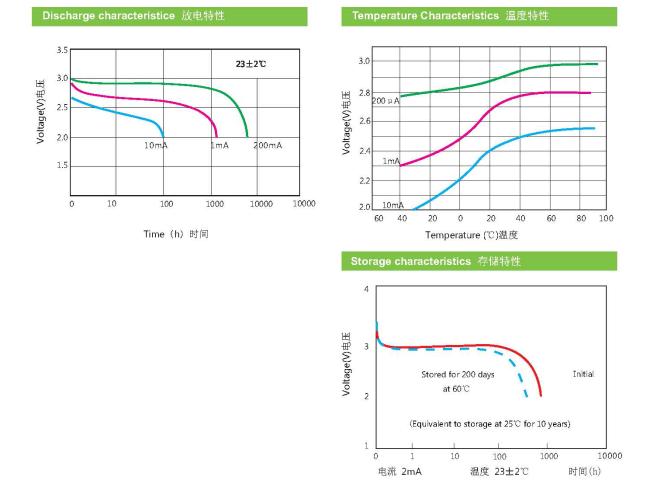

- High capacity, steady performance, stable discharge voltage and non-voltage hysteresis
- Wide temperature range: can be used between -40°C ~ +85°C
- Low battery self-discharge: annual reduction rate of less than 1% of the capacity
- A fully sealed structure, significantly reduced the rate of cell leakage, batteries can be stored at room temperature for more than 10 years
- Good battery safety performance, reliablibility, non-pullution, green power
- Different design of power type and energy type batteries are offered to meet different operating requirements.
- Industrial field: automation instrumentations and equipment, oil wells, mines, medical equipment, burglar alarm, wireless communication, sea survival, etc.
- Modern national defense and military fields: aviation, spaceflight, marine electronics, air-sea-land weapons, etc.
- Various smart meters: smart electric meters, water meters, heat meters and gas meters
- Radio alarm equipment/sensors: smoke alarms and temperature monitors
- Remote monitoring systems: positioning devices and marine telemetry systems
- Automotive electronics: tire pressure monitoring systems
- Memories and standby power supplies: memory backup, clock power supplies and data backup power supplies
- Time counter, number counter
| Model | Size |
Nominal Voltage (V) |
Nominal Capacity (mAh) |
Max. Continuous Current (mA) |
Max. Pulse Current (mA) |
Operation Temperature |
Dimension (mm) |
Weight (g) |
Data Sheet |
| CR14250 | 1/2AA | 3.0 | 600 | 500 | 1500 | -40°C ~ 85°C | φ14.5*25.5 | 10 | |
| CR14335 | 2/3AA | 3.0 | 800 | 1000 | 2000 | -40°C ~ 85°C | φ14.5*33.5 | 14 | |
| CR14505 | AA | 3.0 | 1400 | 1500 | 3000 | -40°C ~ 85°C | φ14.5*50.5 | 21 | |
| CR2 | 3.0 | 850 | 1000 | 2000 | -40°C ~ 85°C | φ15.5*27.5 | 13 | ||
| CR123A | 2/3AA | 3.0 | 1400 | 1500 | 3000 | -40°C ~ 85°C | φ17*33.5 | 20 | |
| CR17450 | 3.0 | 2000 | 1500 | 3000 | -40°C ~ 85°C | φ17*45.5 | 26 | ||
| CR17505 | 3.0 | 2300 | 1500 | 3000 | -40°C ~ 85°C | φ17*50.5 | 30 | ||
| CR18505 | A | 3.0 | 2500 | 2000 | 3000 | -40°C ~ 85°C | φ18.5*50.5 | 35 | |
| CR26500 | C | 3.0 | 5400 | 2000 | 3000 | -40°C ~ 85°C | φ26*50.5 | 62 | |
| CR34615 | D | 3.0 | 12000 | 2000 | 3000 | -40°C ~ 85°C | φ34*61.5 | 125 | |
| CR-P2 | 6.0 | 1400 | 1500 | 3000 | -40°C ~ 85°C | 34*19.5*35.8 | 42 | ||
| 2CR5 | 6.0 | 1400 | 1500 | 3000 | -40°C ~ 85°C | 34*17*45 | 43 | ||
| CR9V | 9.0 | 800 | 500 | 1000 | -40°C ~ 85°C | 17*26*48.8 | 40 | ||
| CR14250SE | 1/2AA | 3.0 | 900 | 8 | 70 | -40°C ~ 85°C | φ14.5*25.5 | 11 | |
| CR14335SE | 2/3AA | 3.0 | 1100 | 9 | 80 | -40°C ~ 85°C | φ14.5*33.5 | 16 | |
| CR14505SE | AA | 3.0 | 1800 | 10 | 100 | -40°C ~ 85°C | φ14.5*50.5 | 22 | |
| CR15270SE | 3.0 | 1000 | 9 | 80 | -40°C ~ 85°C | φ15.5*27.5 | 13 | ||
| CR17335SE | 2/3AA | 3.0 | 1800 | 10 | 100 | -40°C ~ 85°C | φ17*33.5 | 22 | |
| CR17450SE | 3.0 | 2400 | 15 | 150 | -40°C ~ 85°C | φ17*45.5 | 28 | ||
| CR17505SE | 3.0 | 2700 | 15 | 150 | -40°C ~ 85°C | φ17*50.5 | 30 | ||
| CR18505SE | A | 3.0 | 3000 | 20 | 200 | -40°C ~ 85°C | φ18.5*50.5 | 38 |
Forte's battery is an experienced supplier of batteries specialized in the production of Lithium batteries.
Includes LiSOCL2 battery, LiMnO2 battery and custom-designed battery packs.
We welcome to OEM and ODM orders.Thanks.
