ER14250 Bobbin Type Battery ER Lithium BATTERY
Lithium Thionyl Chloride Battery ER14250 3.6V 1200mAh for Smoke & Anti-theft Alarm

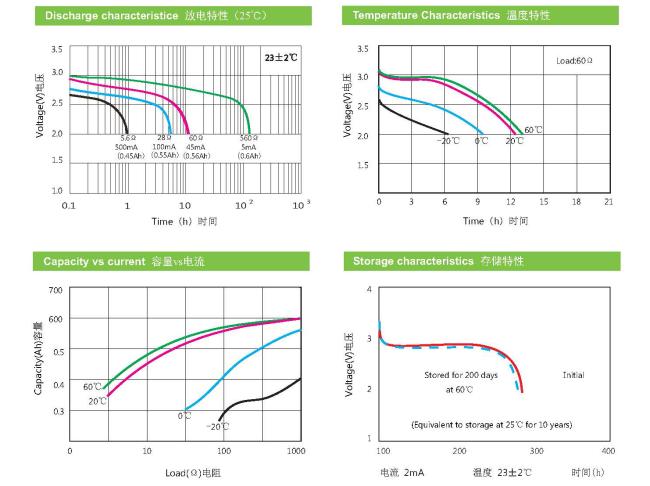

Feature of high Performance of Lithium Thionyl Chloride Battery
- Higer Capacity, the energy density can reach to 680wh/kg.
- High Voltage:open circuit voltage of single cell is 3.65V, operating voltage varies with the load from 3.3V~3.6V.
- Table Operating Voltage: excellent stability. On the high voltage platform where the voltage is almost unchanged, the output capacity is still more than 90%.
- Wide Temperature Range: can be operated in the temperature of -60°C ~ +85°C.
- Long Storage Life: self-discharge rate is less than 1%.
- The shelf life is more than 10 years when stored in normal temperature, due to its hermetically sealed structure which reduces the leakage greatly.
Application
- Utility meter (water, electricity, gas,heat meter)
- Automatic meter reading
- Alarm or security system (smoke alarm detector)
- GPS tracking systems
- Real time clock
- Military
- Automotive electronics
- Professional electronics
Product List
| Model | Size |
Nominal Voltage (V) |
Nominal Capacity (mAh) |
Max. Continuous Current (mA) |
Max. Pulse Current (mA) |
Operation Temperature |
Dimension (mm) |
Weight (g) |
Data Sheet |
| ER14250 | 1/2AA | 3.6 | 1200 | 25 | 50 | -60°C ~ 85°C | φ14.5*25 | 10 | |
| ER14335 | 2/3AA | 3.6 | 1650 | 75 | 150 | -60°C ~ 85°C | φ14.5*33.5 | 13 | |
| ER14505 | AA | 3.6 | 2500 | 100 | 200 | -60°C ~ 85°C | φ14.5*50.5 | 19 | |
| ER17335 | 2/3A | 3.6 | 2200 | 100 | 200 | -60°C ~ 85°C | φ17*33.5 | 19 | |
| ER17505 | A | 3.6 | 3500 | 100 | 200 | -60°C ~ 85°C | φ17.5*50.5 | 26 | |
| ER18505 | A | 3.6 | 4000 | 130 | 200 | -60°C ~ 85°C | φ18.5*50.5 | 32 | |
| ER26500 | C | 3.6 | 8500 | 200 | 400 | -60°C ~ 85°C | φ26.2*50 | 58 | |
| ER34615 | D | 3.6 | 19000 | 230 | 400 | -60°C ~ 85°C | φ34.2*61.5 | 107 | |
| ER261020 | CC | 3.6 | 17000 | 200 | 400 | -60°C ~ 85°C | φ26.2*100 | 100 | |
| ER341245 | DD | 3.6 | 35000 | 400 | 600 | -60°C ~ 85°C | φ34.2*125 | 220 | |
| ER9V | 3.6 | 1200 | 25 | 50 | -60°C ~ 85°C | 26*17*48.8 | 40 |
