70 Meters OM3 LSZH AOC Fiber Optical Cable 48Gbps 8K HDMI 2.1
100 meters AOC 48Gbps 8K HDMI 2.1 Fiber Optical Cable LSZH Outer Sheath
Brief Overview
The 8K HDMI2.1 AOC HD/2.1-S series from Hangalaxy brand is an active optical cable with high bandwidth and low power consumption. Using optical fiber instead of copper cable as the high-speed signal transmission medium, it can transmit 8K@60HZ ultra-high-definition images to 70 meters without loss. Compared with traditional copper cable, our HD/2.1-S series active optical fiber cables have the advantages of longer, thinner, softer, better signal quality, no radiation and no electromagnetic interference. Compared with other HDMI fiber optic transmission solutions, HD/2.1-S series fiber optic cables have the advantages of convenient use, good compatibility, and no need for external power supply.
Physical / Environment
| Cable OD | 4.4mm |
| Tensile (Long-term / Short-term) | 150N (IEC-60794-1-21) |
| Bending (Long-term / Short-term) | 110N/100mm (IEC-60794-1-21) |
| Maximum Bending Radius | 50mm (IEC-60794-1-21) |
| Operating / Storage Temp. | 0℃ ~ 50℃ /-20℃ ~ 70℃ |

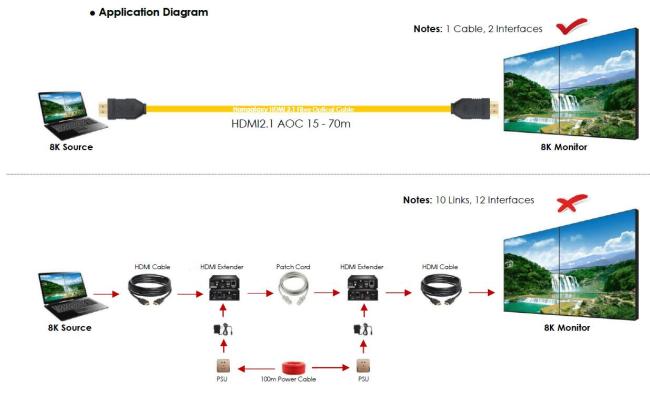

Application
Home theater.
LED control room.
Multimedia conference room.
Fusion System Simulation.
Exhibitor display.
Commercial retailer.
VR system.
Experience center.
HD Surveillance System.
Technical Parameter
| Cable Length | Max 70 meters |
| Connector Type | HDMI Standard Type A (Male) - HDMI Standard Type A (Male) |
| Cable Type | Hybrid Optical Cable with OM3 Fiber and Copper Wire |
| HDMI Version | 2.1 |
| Supports Resolutions | Supports resolutions up to: 8K@60Hz 4:4:4 |
| HDCP | 1.4/2.2/2.3 |
| Power Consumption | 225mW (current less than 45mA) |
| Power Supply | No external power supply required, 5V (international standard) is taken from the HDMI interface of the main device |
| Jacket | LSZH, TPU for customized |
| HDTV | 7680*4320@60Hz |
| Bandwidth | 48 Gbps |
| Regulatory Compliance | CE, FCC, RoHs compliant |
