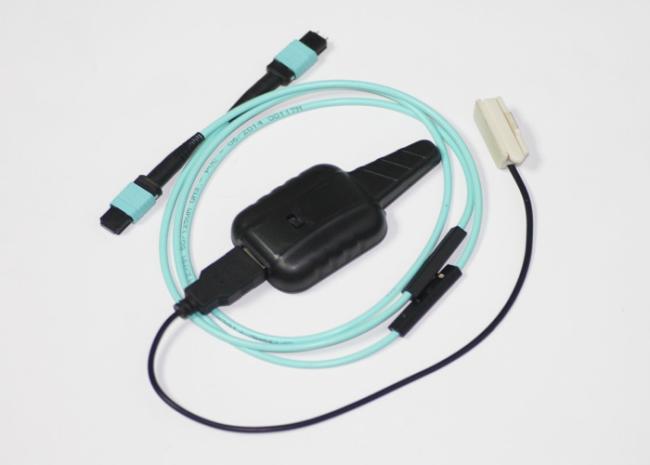

High Density Fiber Optic MPO MTP Cable OM3 Optical Tracing 3.0mm 12 Cores
3.0mm 12 Cores MPO Fiber Multimode ClearCurve OM3 Optic Tracing Cable Aqua LSZH Jacket
Key Characteristic
(1) High Density Fiber Management Solution;
(2) 8 or 12 Fibers per connecter;
(3) Mates to all MTP or MPO connectors;
(4) Precision polished for minimum insertion loss and back reflection;
(5) Push/Pull Connector Mating;
(6) Plenum Rated Cable;
(7) Meets EIA/TIA 568-B.3;
(8) Fanouts to discrete simplex connecters available;
(9) 50 and 62.5 micron core fiber available.
Physical
| Cable | 50 micron | 62.5 micron |
| Minimum Bend Radius | 30mm | 30mm |
| Core/Cladding Diameters | 50/125um | 62.5/125um |
| Certification/Flame Rating | USA (UL)=OFNP, Canada (CSA)=OFN/FT6 | |
| Ferrule Material | Glass Filled Resin | |
| Guide Pins | Surgical Grade Stainless Steel | |
| Polish | PC, 1 micron (typical) protrusion | |
| Rematability (per EIA-455-21A) | 200 | 200 |
Performance
| Connectors (per termination) | 50 micron | 62.5 micron |
| Typical Insertion Loss | 0.13-0.31 dB | 0.10-0.24 dB |
| Maximum Insertion Loss | 0.5dB | 0.5dB |
| Maximum Return Loss | 20.0dB | 20.0dB |
| Standard Cable | 850nm | 1300nm |
| Cable Attenuation | <5.0dB/km | <3.0dB/km |
| Cable Attenuation @23º, Typ | 3.5dB/km | 0.75dB/km |
| LED Bandwidth-62.5u core | >160MHz-km | >500MHz-km |
| LED Bandwidth-50u core | >500 MHz-km | >500 MHz-km |
| Skew | <45ps/m | <45ps/m |
Environmental
| Operating Temperature Rating | -5°C to +70°C (exceeds EIA/TIA 568-B.3) |
| Storage Temperature Rating | -40°C to +70°C (exceeds EIA/TIA 568-B.3) |
Application
(1) Local Area Network (LAN);
(2) Data communication network;
(3) Telecommunication optical transmission network;
(4) Optical access network(OAN);
(5) Active device termination;
(6) Fiber optics data transmission(FODT);
(7) Test Equipment;
(8) CATV.

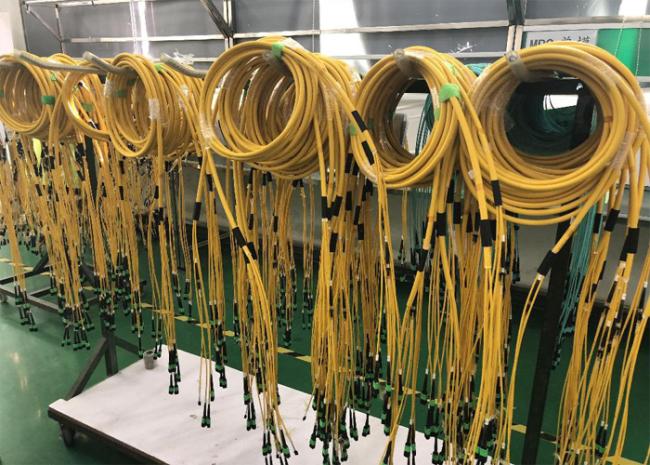

Hangalaxy Factory
Packing
(1) According to Stardard Export Packing.
(2) Carton box, wooden box, wooden pallet.
Shipping
(1) International express such as UPS, TNT, DHL, etc.
(2) Internatioal air: CA, AA, EA, etc.
(3) By sea.
