48CH LC UPC Fiber Optic CWDM DWDM AAWG Module High Channel Isolation
Price:
Negotiation By email or Phone Call
MOQ:
MOQ Saying is 10pcs
Delivery Time:
7 Business Days
Brand:
Hangalaxy
Product Description

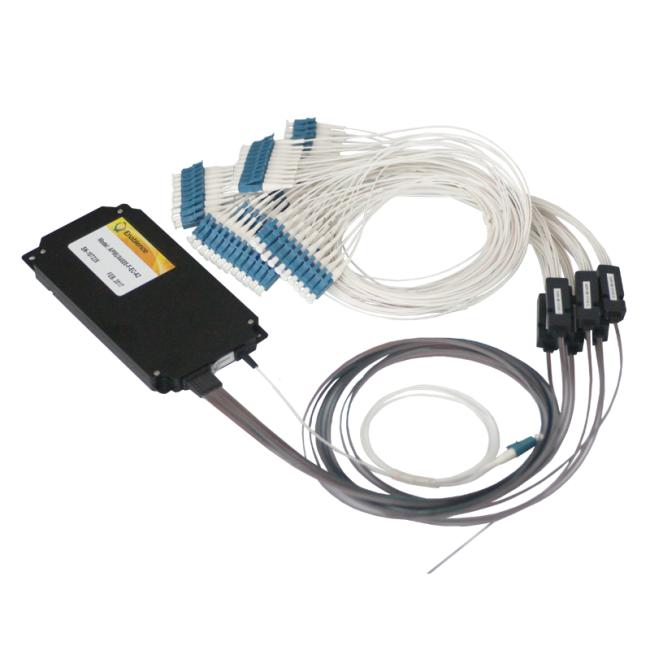

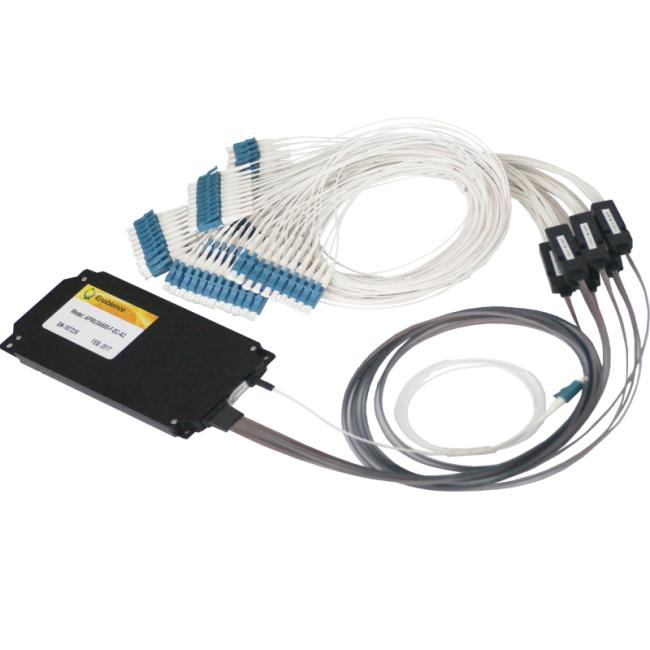

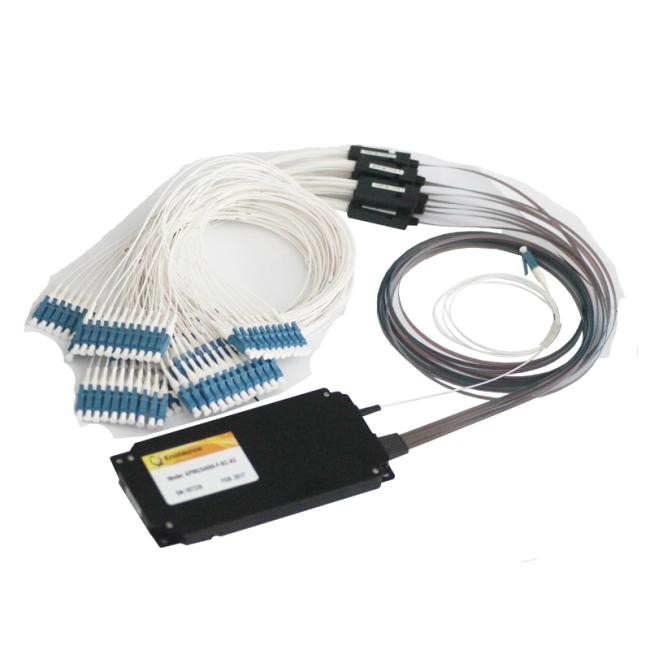

48CH LC UPC Fiber Optic AWG DWDM Demux Mux Optical Mudule
DWDM(Dense Wavelength Division Multiplexing)is a Technology That Puts Data Different Sources Together on an Optical Fiber,with Each Signal Carried at the Same Time on Its Own Separate Light Wavelength.
Keyed Characteristics
1. Low Insertion Loss;
2. High Channel Isolation;
3. Excellent thermal stability;
4. High Stability and reliability;
5. Telcordia compliant;
6. RoHS compliant.
Application
● Metro/Access communication networks;
● Fiber optic instruments;
● Mobile optical networks.
Technical Parameter
| Parameter | Unit | Value | ||
| Pass Band Type | - | Flat-top | Gaussian | |
| Channel Spacing | GHz | 150 | ||
| Channel Number | CH | 17 | ||
| Wavelength Accuracy | nm | ±0.05 | ||
| 1dB Pass Band | nm | ≥0.38 | ≥0.2 | |
| 3dB Pass Band | nm | ≥0.58 | ≥0.4 | |
| Insertion Loss1 | dB | ≤6.0 Typ.4.5 | ≤3.5 Typ.2.8 | |
| Ripple | dB | ≤0.5 | ≤1.5 | |
| Uniformity | dB | ≤1.5 | ≤1.5 | |
| Adjacent Crosstalk | dB | ≥23 | ≥26 | |
| Non-adjacent Crosstalk | dB | ≥29 | ≥35 | |
| Total Crosstalk | dB | ≥21 | ||
| Polarization Dependent Loss(PDL) | dB | ≤0.5 Typ.0.25 | ≤0.7 Typ.0.35 | |
| PMD2 | ps | ≤0.5 | ||
| Chromatic Dispersion2 | ps/nm | ±20 | ||
| Return Loss | dB | ≥40 | ||
|
Fiber |
Input Port | mm | Φ0.9 | |
| Output Ribbon | - | - | ||
| Fan Out | mm | Φ0.9 | ||
| Operation Temperature | ℃ | -40～+85 | ||
| Storage Temperature | ℃ | -40～+85 | ||
| Package | mm | 80×40×9.6 | ||
| Parameter | Unit | 16CH | 18CH | |
| Operating Wavelength | nm | 1270 ~ 1611 | ||
| Channel Spacing | nm | 20 | ||
| Channel Passband | nm | CWL±6.5 | ||
| Insertion Loss (Without Connectors) | Max. | dB | 1.6 | 1.8 |
| Adjacent Channel Isolation | Min. | dB | 30 | |
| Non-Adjacent Channel Isolation | Min. | dB | 45 | |
| Directivity | Min. | dB | 55 | |
| Return Loss | Min. | dB | 45 | |
| Polarization Dependent Loss | Max. | dB | 0.2 | |
| Polarization Mode Dispersion | Max. | dB | 0.3 | |
| Passband Ripple | Max. | ps | 0.5 | |
| Tensile Load | Min. | N | 5 | |
| Power Handing | Min. | mW | 300 | |
| Operating/Storage Temperature | ℃ | -40 ~ +80 | ||
| Package Dimension (L x W x H) | mm | 50*50*6.6 | ||
