MTP To LC Singlemode Fiber Optic MPO MTP Cable / OS2 Mtp Cassette Module 40G 24 Cores
40G 24 Cores MTP to LC Singlemode OS2 Fiber Optic Cassette Moodule
The Hangalaxy Fiber MTP LGX Cassette that provides secure transition between MTP and LC discrete connectors, and comes pre-terminated with 12 LC connections on the front side and one 12 fibers MTP connector at the rear. Inside the MTP cassette there is one 12 fibers harness that breakout from the LC connector to the MTP connector, giving a quick and easy plug-and-play data solution.
Application
1. Come with Standard Black LGX footprint styles and Available in Custom-Built Cassettes;
2. 100% factory tested with test results included with each cassette;
3. Plug-n-play cassette eliminates the need for field termination or splices;
4. Allow for a simple migration path to 40GbE and 100GbE networks with MPO/MTP cassettes;
5. MPO/MTP adapter swivel allows for easy cable routing and proper bend radius;
6. All cassettes use either 24-fiber or 12-fiber low-loss MPO/MTP connectors on the back.
Technical Detail
| Optical Performance |
MTP® Elite Multimode Connector |
LC Multimode Connector |
MTP® Elite Single-mode Connector |
LC Single-mode Connector |
| Insertion Loss |
0.35dB Typical (All Fibres) 0.50dB Max (Single Fibre) |
0.45dB Typical 0.50dB Max |
0.25dB Typical (All Fibres) 0.35dB Max (Single Fibre) |
0.25dB Typical 0.35dB Max |
| Return Loss | >30db | >30dB | >60dB | >55dB |
| Front Adapter Type | LC duplex x 12pcs, LC quad x 6pcs |
|
Front Adapter Color |
Aqua: OM3/OM4 Blue : SM/UPC Green: SM/APC |
| Connector A |
SM:LC/UPC 0.9mm, LC/APC 0.9mm or SC/UPC 0.9mm MM:LC/UPC 0.9mm |
| Connector B |
SM:MPO / MTP® (male) / APC MM MPO / MTP® (male) / PC |
| Polarity Type | Type A |
| Dimension | L×W×H(mm):111 x 101 x 90mm |
General Features
• MTP® Elite Connectivity Solutions;
• OM3/OM4 & OS2 fibre grades;
• 2x 12f or 1x 24f options;
• Method A polarity configuration;
• 100% NEATEL factory termination and tested for reliability;
• Fully compatible with NEATEL 1U and 4U chassis;
• Easy deployment – modular system saves installation time;
• Hyper high density -96f in 1U and 384f in 4U;
• 1.2mm Cold Rolled Steel good quality build up.

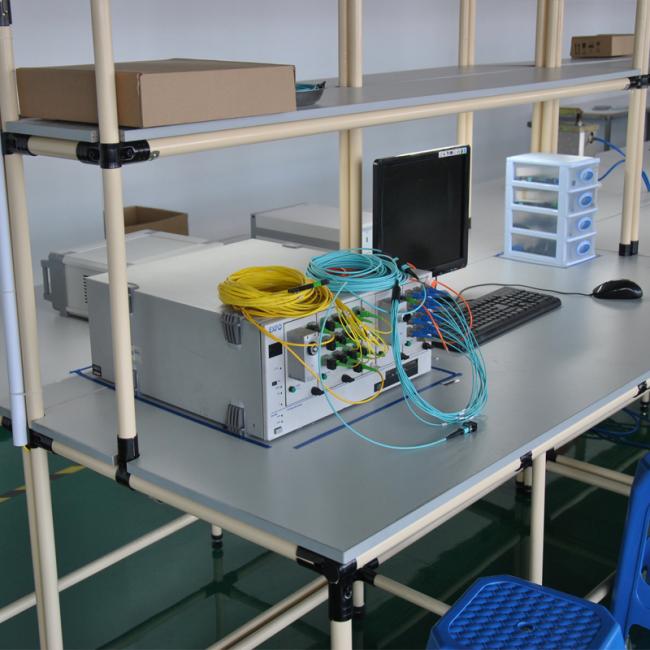

Workshop
