SAMSUNG LG 55" 4K 3x3 3.5mm Bezel LCD Video Wall
SAMSUNG LG Video Wall 55 Inch LCD Panel Big TV Screen 4K 3x3 4x4 With 1.8mm/3.5mm Bezel
Commercial LCD Video Wall
100% Original A + Grade LG/Samsung Panel
- HD ultra slim screen.
- 178° Visual angle.
- 1.8mm/3.5mm narrow bezel.
- Pollution-free.
4K Giant LCD Screens Parameters
| Panel Size | 46" | 49" | 55" | 65" |
| Panel Brand | Samsung | LG | Samsung/LG | Samsung |
| Model | HBY-PJ460P | HBY-PJ490P | HBY-PJ550P | HBY-PJ650G |
| Pixel Pitch | 0.53025*0.53025mm | 0.55926*0.55926mm | 0.63*0.63mm | 0.372*0.372mm |
| Viewing Angle | 178H/178V | |||
| Response Time | <6ms | |||
| Display Color | 8Bit,16.7M | |||
| Contrast Ratio | 3500:1 | 1300:1 | 4500:1 | 4000:1 |
| Connectivity | HDMI/DVI/VGA/AV/RJ45/Audio/Display Port | |||
| Bezel Width | 1.7mm/3.5mm | 1.8mm/3.5mm | 0.88mm/1.7mm/1.8mm/3.5mm | 3.5mm |
| Brightness | 500cd/m2&700cd/m2 | 500cd/m2&700cd/m2 | 500cd/m2&700cd/m2 | 700cd/m2 |
| Resolution | 1920*1080 | 1920*1080 | 1920*1080 | 3840*2160 |
| Power supply | AC100-240V/50-60Hz | |||
| Sleep mode | 0.5W | |||
| Max comsumption | 180W | 200w | 220w | 350w |
| Net weight | 20kg | 25kg | 28kg | 40kg |
| Working Temp | 0-40℃ | |||
| Working Humidity | 10-90% | |||
| Operation | 7x24hrs | |||
| Life | >60,000hrs | |||
| Warranty | Standard one year without artificial damage,can be extended to 3 years,lifelong maintenance | |||
55" LCD Panel Descriptions
1. 3D Noise Reduction, Restore True Colors
DNR digitallt samples the video image and remove the noise of the image edge serrated, which accurate restore the clear and fine picture.
2. 178° Super Wide Angle
178° no dead angle screen, the full range of display.
3. Intelligent Split Screen
Screen intelligent splicing, single screen arbitrary combination.
4. Rich Stitching Methods
Users can flexibly open multiple windows on the video wall, define the window size, set the display size, fill the display content arbitrarily, expand the window arbitrarily to the entire video wall, and truly realize the display requirements that are desired.

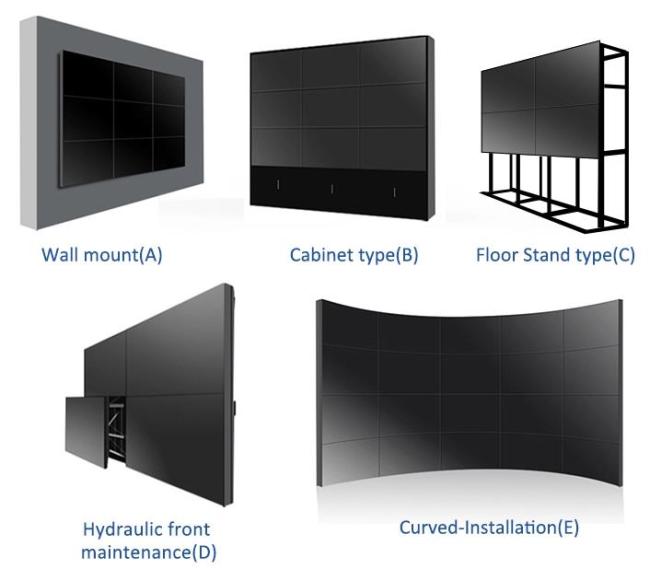

Indoor LCD TV Multiple Installation Methods
Samsung/LG Panel Application Scenarios
Why choose us
- Over 6 years of experience.
- Yida provide OEM/ODM services.
- MOQ: 1pc, sample order are welcome for your evaluation.
- Abundant inventory.
- 1-3 years warranty.
- Free design products.
- Professional quality inspection team.
Unique Display LCD Video Wall One-Stop Solution
