1920*1080 500 Nits 43" Floor Standing Digital Signage
43" Full HD LCD Advertising Player Digital Signage Interactive Totem Floor Standing LCD Kiosk
Indoor LCD Player Parameters
| Panel,Player Specifications | ||
| Touch Function | Touchscreen | tempered glass |
| Type | 10 dots PCAP touch | |
| Touchscreen Resolution | 4096×4096 | |
| light transmittance | 88% light transmittance | |
| Operating temperature | 0°C ~ 50°C | |
| Life | 5 years | |
|
Panel Specifications |
Panel type | LG IPS LCD |
| Physical Resolution | 1920*1080 | |
| Display Colors | 16.7M | |
| Viewing Angle | H178º/ V178º | |
| Luminance(nits) | 500cd/m2 | |
| Contrast | MEGA DCR | |
| Backlit type | WLED | |
| Response time | 6ms | |
| Life(hrs) | more than 60000 | |
|
Input &Storage |
WIFI Module | YES |
| RJ45 | 1 | |
| USB | 1(USB 2.0) | |
| Output | VGA | 1 |
| HDMI | 1 | |
|
Consumption |
Power Supply | AC100~250V 50/60 HZ |
| Max.Consumption | ≤420W | |
| Standby Consumption | ≤3W | |
|
Working function &Environment |
Control Method | Wifi/RJ45 USB,CF,SD card Control,IR |
| Color System Support | PAL/NTSC/SECAM | |
| OSD Language | English/Chinese(Multiple Language can be customized) | |
| Rich Resolution | Support 1080P,1080I,720P,480P &multiple resolutions | |
| Video forma tsupport | MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI | |
| Image format support | JPEG/BMP/TIFF/PNG/GIF | |
| Audio format support | Wave/MP3/WMA/AAC | |
| Splicing Display | Support | |
| Working Temperature | 0℃-50℃ | |
| Working Humidity | 10%-85% | |
| Storage Temperature | 0℃-50℃ | |
| Storage Humidity | 5%-95% | |
| Cooling | Low noise fans | |
|
Appearance |
Application Condition | Indoor/Semi Outdoor |
| Material | Cold-roll steel SPCC | |
| Frame Color | Black/White/Customization | |
| Mount/Installation type | Standing,iPhone seamless design | |
| DimensionPacking way | Full wood box pack | |
| Quality Standard | CE,CCC,RoHS,FCC |
|
LCD Advertising Kiosk Functions

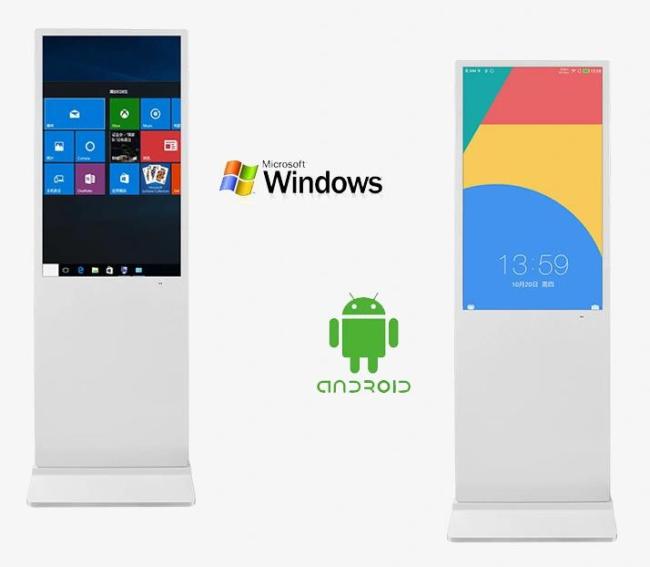

1. Support for Multiple Systems
2. Narrow Bezel
4. Split Screen Display
5. Touch Panel High Sensitivity
Digital LCD Signage Details
Floor Standing Player Packing
- PE protective film.
- Foam pad.
- Carton.
- Plywood case.
Interactive LCD Display Applications
About Shenzhen Yida
Shenzhen Yida Technology Co., Ltd located in Shenzhen,Guangdong covering 3,000 square meters which is one of leading manufacturer specialized in LCD Video Wall, Indoor Digital Signage and Touch Standing Kiosk Screen about 6 years experience ! Our products have passed CE/ RoHS/FCC/ CCC certificates. Customers are growing all over the world such as North America,South America,South Africa,North Africa,Southeast Asia, Euro etc.
We aims to provide every customer reliable quality and excellent after-sale service. Win-win and long-term cooperation is Yida's eternal goal!
