1.8mm Bezel Floor Standing 200W 55" 4x3 Lcd Wall Panel

Price Negotiable
Price: Negotiable
MOQ: 1pcs
Delivery Time: 7-10 days
Brand: YDLCD
Product Description

55 inch 4x3 lcd video wall panel 1.8mm ultra narrow bezel floor standing







55 Inch Lcd Video Wall Parameter



LCD Technology
Original Samsung DID LCD
Active Screen Diagonal
55" (LW550HN17)
Panel Dimension(WxH)
1211.6 × 682.4mm
Total Bezel Width
1.7mm
Aspect Ratio
16:9
Physical Resolution
1920*1080
Backlight System
WLED
Luminance(nits)
500cd/m2
Contrast
4000:1 (type.)
Viewing Angle
H 178°|V 178°
Display Colors
8Bit,16.7M
Response Time
<=6ms
Life(hrs)
>60,000(hrs)
Surface
Anti-glare
Standby Power Consumption
<3W
Maximum Power Consumption
<=200W
Power Supply
AC100~240V 50/60 HZ
Cooling
Low noise fans
Working Time Capacity
7x24x365hours
Digital signal input
HDMI×1 1920x1080@60Hz backward compatible
Computer signal input
VGA(DB-15) ×1 1920x1080@60Hz backward compatible
Digital signal input
DVI(DVI-I)×1 1080P(1920×1080) backward compatible
RS232 input
1
RS232 output loop
2
Computer centralized control interface
RS232
Working temperature
0℃~ 50℃
Storage temperature
-20℃~ 65℃
Working Humidity
20%-80%

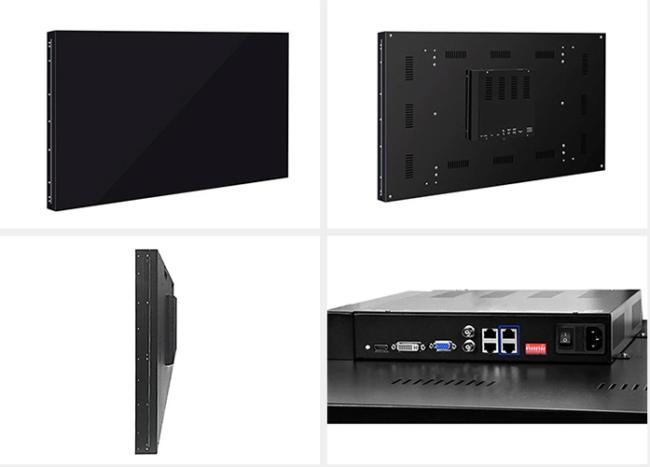

55 Inch Lcd Video Wall details



55 Inch Lcd Video Wall Features



1. IPS Grade Panel with Narrow Bezel of 0.88mm, 1.7mm, 3.5mm available;

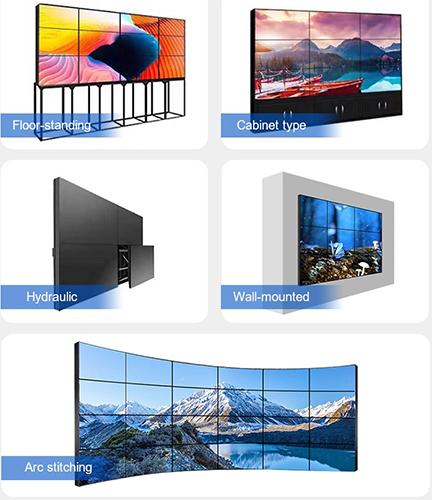

2. Multiple Install Method



Application:
