P3.91 P4.81 Outdoor LED Video Wall Rental 250x250mm Module
P3.91 P4.81 Outdoor LED Video Wall Rental 250x250mm Module
P3.91 P4.81 500 x 1000 mm Outdoor Rental LED Display Video Screen
Product Features
Standard 500x500mm, 500x1000mm cabinet size, adopts 1921 pure black leds, Silan driving IC, refresh rate reach to 3840HZ. Optional curved cabinet, can realize the arc splicing effect of 5-10 degrees of internal radian and 5 degrees of external radian. Stable cabinet structure, no deformation, the contact surface between cabinet is treated by anodic oxidation, which is resistant to collision and friction, satisfying multiple installation and disassembly in rental events.
- Module size:250x250mm, compatible pitch: EH3.91/ EH4.81.
- 500x500mm, 500x1000mm cabinet, stable die-casting alloy structure, not easy to deform.
- Cableless and pluggable power supply, easy to change.

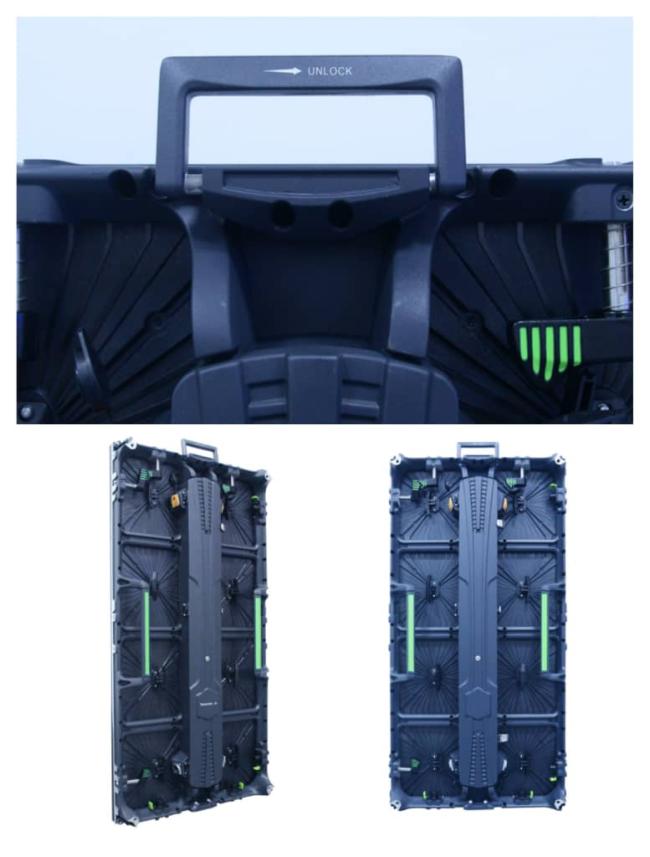

- Intelligent cabinet handle lock, single operation design, time-saving and labor-saving.
- Foldable all-around corner protectors, effectively protect the edge leds and modules
- Adopt high end big chip pure black leds, ultra-high contrast, high grey scale and high refresh rate.
- Curved function cabinet option, no need curved lock, can realize arc / special-shaped, suitable for different rental events.
Product Details Quick Reviews
1. Application: Outdoor rental LED display video screen
2. Pixel Pitch: P3.91 / P4.81
3. Cabinet size: 500x1000mm
Product Technical Parameter
| P3.91 P4.81 500 x 1000 mm Outdoor Rental LED Display Video Screen | |||
| Item | EH3.91 | EH4.81 | |
| Technical | Pixel Pitch (mm) | 3.91 | 4.81 |
| LED Configuration | 1R1G1B | 1R1G1B | |
| LED Type | SMD1921 | SMD1921 | |
| Physical Density (dot/m²) | 65536 | 43264 | |
| Module Size (W ×H ×D) mm | 250x250 | 250x250 | |
| Module Resolution (W ×H) | 64x64 | 52x52 | |
| Cabinet Size (W ×H ×D) mm | 500x500x89 | 500x500 x89 | |
| 500x1000 x89 | 500x1000 x89 | ||
| Cabinet Material | Die Casting Aluminum | ||
| Scanning Mode | 16 scan | 13 Scan | |
| Cabinet Flatness (mm) | ≤0.20 | ||
| Grey Scale (Bit) | 14 | ||
| Protection Level | IP65 | ||
| Installation/Service Method | Back Installation and Back Service | ||

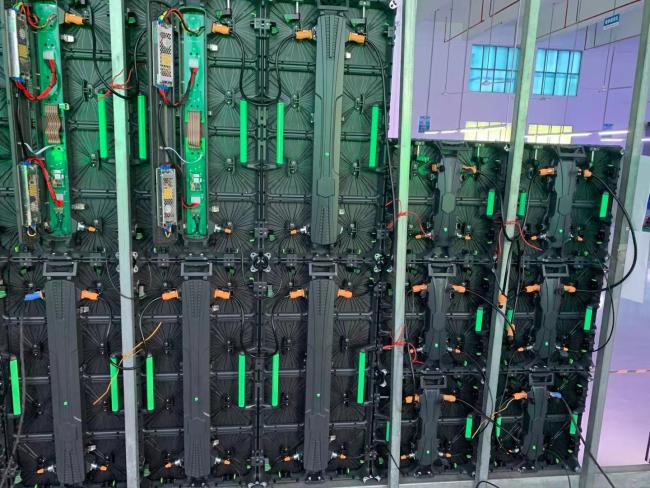

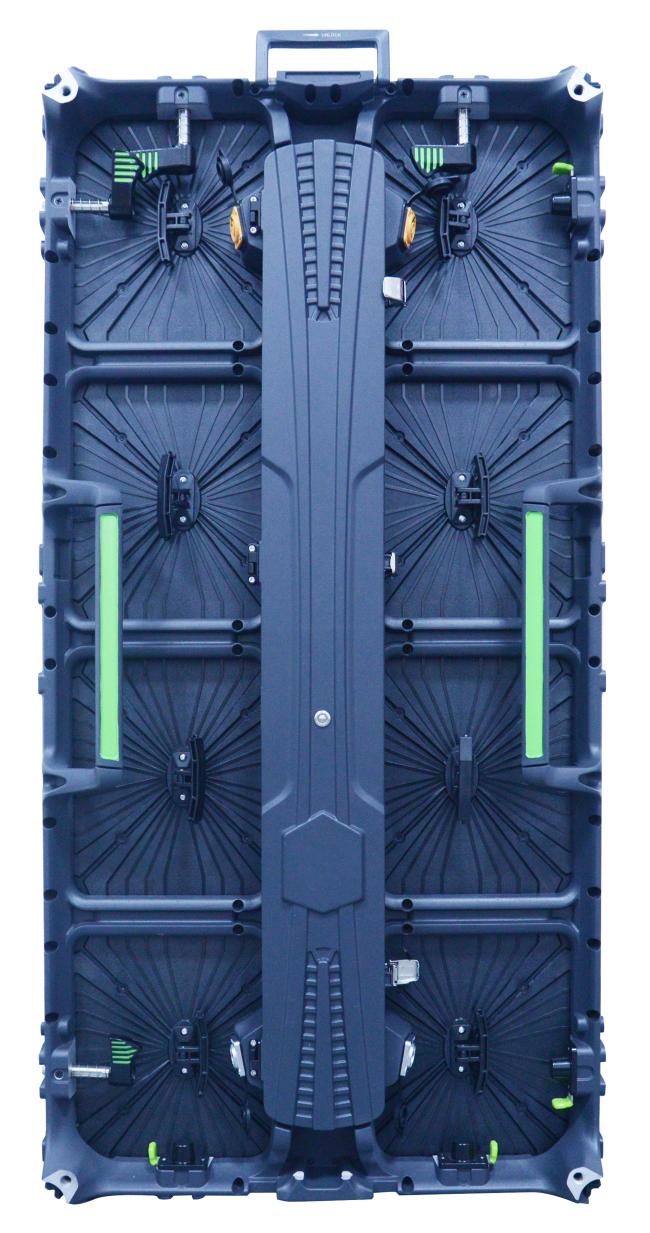

Product Pictures
Packing Details
| Packing info. | |||||||
| No. | Packing | Dimension (cm) | CBM |
Gross weight 5pcs 500x1000mm in 1 flight case |
|||
| 1pcs flight case |
Flight case 5 pcs/case |
109*62*73 | 0.50 | 101.5 kGS | |||
| 20' full container: load 210pcs 500*1000pcs Cabinets 40' full container: load 460pcs 500*1000mm Cabinets |
|||||||

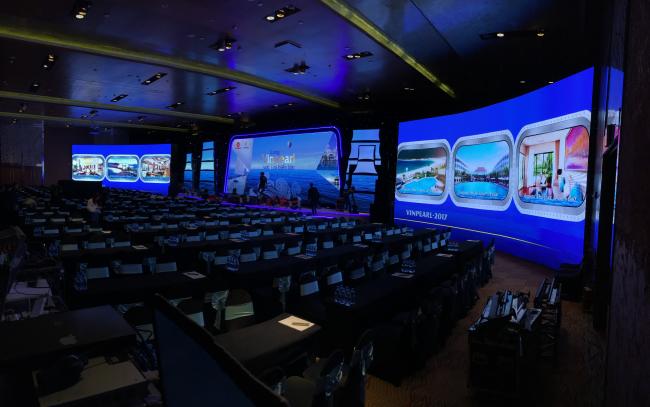

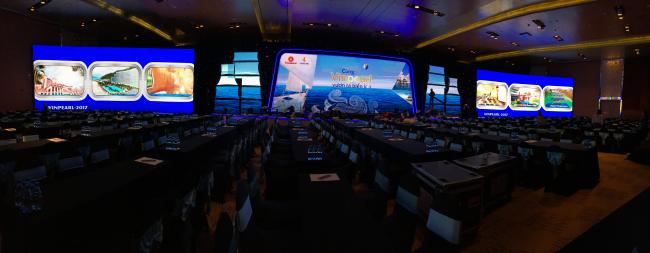

Related Cases
FAQ
| Q: What is the brightness, viewing angle and wavelength of the LED? |
| A: Luminous Intensity is equal to the amount of luminous flux emitted into a very small solid angle at a defined angular orientation from the light source. The measurement for luminous intensity is the candela. Symbol is Iv. Viewing Angle is the total cone angle in degrees encompassing the central, high luminous intensity portion of the LED beam from the on-axis peak to the off-axis point where the LED intensity is 50% of the on-axis intensity. This off-axis point is known as theta one-half ( 1/2). Two times 1/2 is the LEDs' full viewing angle; however, light is visible beyond the1/2 point. Wavelength is the distance between two points of corresponding phase and is equal to waveform velocity divided by frequency. It defines what color human eyes could recognize |
| Q: What is dominant wavelength? Please specify the ranges of wavelength in red, green and blue color respectively. |
| A: Dominant wavelength is defined as the best range of wavelength showing the most natural color recognized by human eyes. Researches indicate that fixed colors with wavelength of 620-630nm (red), 520-530nm (green) and 460-470nm (blue), in fact mixed in a particular proportion, can get the pure white. That is, in display field, people use luminous materials with above wavelength to make "compounded" white more natural.In order to get a good balance white led display, we specify the led colors with wavelength within 4nm for each color |
| Q: Which chip vendors are you buying from? |
| A: It depends on the Customer's requirement. We can purchase from Japan, Korea, Europe, USA. We are using chips mainly from Taiwan |
| Q: What is the chip size you're using for outdoor display? How about indoor display? |
| A: For outdoor display, we're using 12mil chip for red, 14mil for both green and blue. Regarding indoor display, 9mil for red, 12mil for green and blue are currently adopted |
| Q: How much will the brightness of LED drop down after 1000hrs? |
| A: Based on the result of aging test, the brightness decay of green LED is around 5%-8%, while blue is around 10%-14% and red is around 5%-8% |
